DYE Pot Still -Triple Still-650gal/350gal/300gal

Availability:
Quantity:


DYE Pot Still - Triple Still - 650gal/350gal/300gal

The DYE Pot Still – Triple Still is an advanced distillation solution for commercial and professional distillers. It is a versatile pot still with three capacity options: 650, 350 and 300 gallons that can accommodate various distillation needs ranging from large-scale production to smaller specialized batches.


Main Features:

1.Premium Copper Construction: Crafted from high-grade copper, the DYE Copper Pot Still offers superior thermal conductivity, ensuring optimal heat distribution and enhancing the flavor profile of your spirits. Copper also naturally removes sulfur compounds, resulting in cleaner, smoother distillates.

2.Triple Still Design: This model features three distinct stills, providing unparalleled flexibility in the distillation process. Whether you need to operate each still independently or in a synchronized manner, the DYE Copper Pot Still offers the versatility to meet diverse production demands.

3.Varied Capacities: With options of 650 gallons, 350 gallons, and 300 gallons, this pot still is perfect for distillers at any scale. Choose the capacity that best suits your production needs, from large distilleries to specialized craft operations.

4.Advanced Distillation Technology: The Copper Pot Still integrates cutting-edge distillation techniques, ensuring precise control over every aspect of the process. Achieve higher purity & enhanced flavor retention with each distillation cycle.

5.User-Centric Design: Designed with the user in mind, this pot still features easy-to-use controls and components that simplify the distillation process. The ergonomic design reduces labor and maintenance, making it ideal for both seasoned professionals and beginners.

6.Versatile Applications: Perfect for producing a wide range of spirits, including whiskey, gin, rum, and more. The copper pot still is suitable for various distillation methods, allowing for both batch and continuous processes.


Advantage:

1.Enhanced Flavor: The use of copper in the still promotes a more refined flavor profile, removing unwanted impurities and ensuring a superior end product.

2.Efficient Production: The triple still configuration increases production efficiency, allowing for greater output in less time.

3.Adaptable to Your Needs: With multiple capacity options and a flexible design, this pot still can be tailored to your specific distillation requirements.

Upgrade your distillation setup with the DYE Pot Still - Triple Still, and experience unparalleled performance and versatility. For more information or to place an order, contact us today!


Parameter:

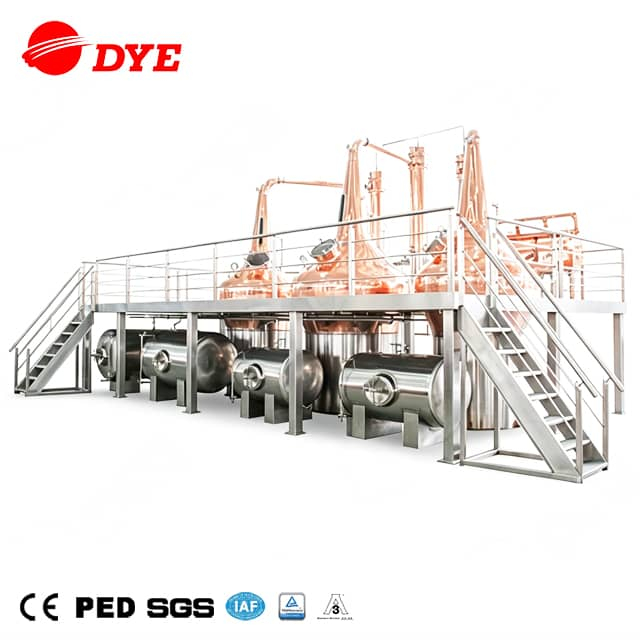

Structure:

DYE-Pot still is 1x still pot, 1x gooseneck(helmet),1x condenser, 1x parrot outlet(spirit safe),

liquor collecting tank, and support frame(leg).

The system can be equipped with CIP pumps and CIP pipes.
Useage: It is mainly used for the production of whiskey or stripping still.
Working Capacity: From 100L~10000L customizable
Heating Method: Steam/Electric heating/Gas burner/Direct fire optional
Voltage Supply: 110/208/200/220/240/380/400/415/460/480/600V 3phase 50/60Hz,Special voltages can be customized
Certification of Motor: UL/CSA/CE/IECEX/ATEX option
If heated by electrical: CE/IECEX/ATEX/NEPSI certified electric heating elements are available
Material: Stainless steel 304/ Stainless steel 316L/ C12200 copper/glass optional
Control section: Manual/semi-automatic /PLC control/fully automatic control optional

DYE Pot Still -Triple Still-650gal/350gal/300galDYE Pot Still -Triple Still-650gal/350gal/300gal
