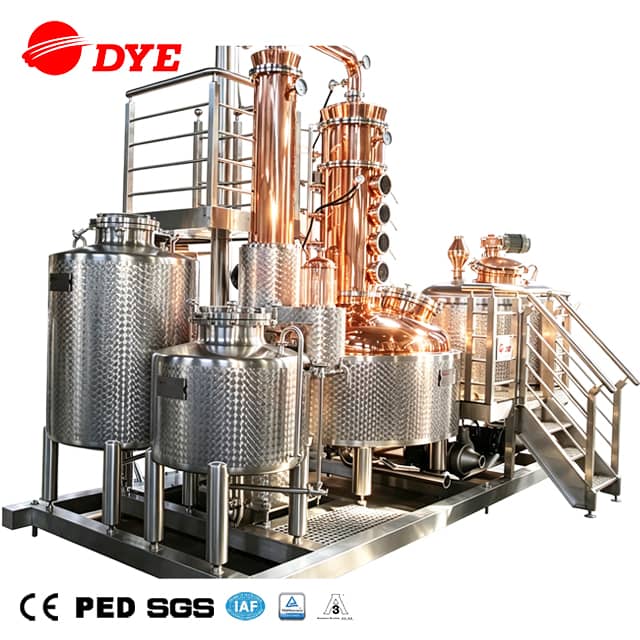

Industrial Alcohol Vodka Brandy Distillation Equipment

Main Structure:

1. 240gal mash tun can be used as fermenter

2. 240gal distilling pot with whisky helmet and have a 4 plate distilling column can be chose.

3. 75gal heart receiving tank

5. 240gal collecting tank

6. Operating platform

7. Control panel, CIP pump and pipelines

1. 240gal mash tun can be used as fermenter:

Working capacity: 240gal

Material: SUS 304

Shape: top dished head with 150 degree conical bottom. Thickness: inner tank: 4mm jacket: 1.5mm cladding: 2mm

With 2.2kw agitator and false bottom

Accessory: prssure relief valve, pressure gauge, full glass manhole, cleaning ball

2. 240gal still( can be used as pot still or column still):

Pot:

Working capacity: 240gal

Material: inner tank Copper Cu12200 with other part SUS304

Shape: dished top and bottom

With 1.1kw agitator

Accessory: prssure relief valve, pressure gauge, full glass manhole, cleaning ball

Gooseneck:

Material: Copper Cu12200

connected by flange and with lyne arm

Distilling column:

Material: Copper Cu12200

with 4 plates and each plate and cleaning ball and drain valve

Dephlegmator:

Material: Copper Cu12200

Type: tube heat exchanger

Condenser:

Material: Copper Cu12200

Type: tube heat exchanger

Outlet parrot:

Material: SUS304 and glass

Suitable lift device to change whisky helment with distilling column

3. 75gal heart receiving tank:

Working capacity: 75gal

Material: SUS 304

Shape: conical top and bottom

Accessory: sample valve, liquidmeter, cleaning ball, full glass manhole

4. 240gal collecing tank:

Working capacity: 240gal

Material: SUS 304

Shape: conical top and bottom

 Accessory: sample valve, liquidmeter, cleaning ball, full glass manhole

5. Operating platform

6. Control panel and pumps
