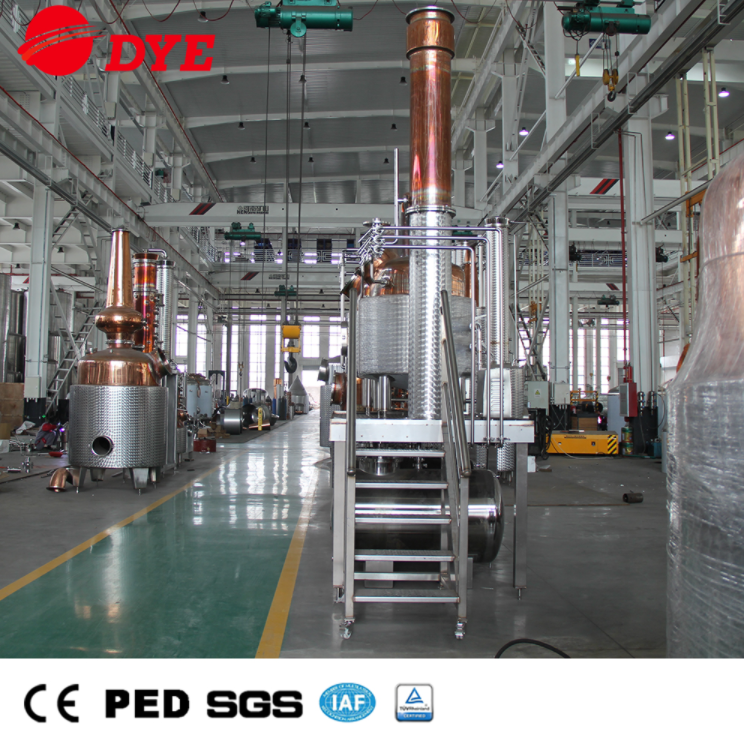

2000L Copper Pot Still Distillation Equipment for Rum Whisky Brandy
Maximize your spirit production with our 2000L Copper Pot Still Distillation Equipment, ideal for crafting high-quality rum, whisky, brandy, and wine. This professional-grade copper pot still is engineered for both large-scale and craft distilleries, offering exceptional performance, flavor extraction, and durability.
Crafted from premium copper, this copper distillation equipment ensures efficient heat transfer and optimal purification, enhancing the taste and quality of your spirits. Perfect for whisky distillation equipment and wine distillation equipment needs, the 2000L capacity allows for high-volume production while maintaining precision and control over the distillation process.
Main Feature:
1. A flexible modular system with free combined components.
2. Optimized FINE Distillation Columns for premium Distillates, is easy to operate and use, easy to clean and occupies a small area.
3. Our high-performance Rectification Columns for effective rectification and cleaning of the distillate easily realize alcohol concentrations of up to 96% vol. at any desired purity level.
4. Efficient CIP spraying ball for 360-degree cleaning, High safety, high work efficiency, long service life, low energy consumption, good quality and low price.
5. Copper Catalytic Converter technology guarantees a reduction of unwanted acid content as well as cyanide and ethyl carbamate levels.
6. The three-way ball valve can be used to make the distillation equipment multi-functional, and different spirits can be made according to customer needs, such as whisky brandy, rum, vodka, gin, tequilas and bourbons etc.
7. Coordinated fine distillation bottoms with maximized copper contact surface, this continuously further developed design ensures that the desired flavors unfold and are separated from unwanted component
8. Italy brand gear box, NEMA standard for North American Market, Explosion proof motor, be CE, UL, CSA approved
Parameter：
| Working capacity: | 2000L |
| Total Volume: | working capacity*130%-150% |
| Voltage: | 200V-240V/380-440V/600V |
| Weight: | 1200kg |
| Material: | SUS3048/SUS316L/COPPER-C12200 |
| Motor: | 3-phase power,UL/CSA/CE/ATEX,or Customizable brand |
| Reducer: | NEMA Standard (Made in Italy);ICE Standard (Made in China) |
| Welding Technolog： | High purity argon arc welding |
| Heating Method: | Steam/Water bath/Oil/Electric/Firewood/Gas |
| Heating form: | Direct or indirect heating |
| Distillation method: | Liquid distillation by default, custom solid distillation can be customized |
| Running time: | 2-8h, Customizable continuous distillation |
| Shape: | Upper and lower heads/Customizable |
| Distilled products: | Gin/Whisky/Vodka/Brandy/Tequila/Rum/Bourbon |
| Optional module: | 1.Cooling water recycling system |
| 2.Light system | |
| 3.Alcohol storage tank system(Head/Heart/Tail) |
DYE's Standard Features Guarantee Your Safety:
1. Explosion-proof mixing motor ,UL/CSA/ATEX Compliant certification based on your local power department needs.
2. Explosion-proof light,24V/DC.
3. Electrical controls that comply with Class 1,Division 1 directives.
4. Cooling water abnormal alarm and emergency shutdown system.
5. Fully closed spirit safe.
6. Equipment is manufactured and designed in accordance with ASME BPVC VIII.
2000L Copper Pot Still Distillation Equipment for Rum Whisky Brandy
Maximize your spirit production with our 2000L Copper Pot Still Distillation Equipment, ideal for crafting high-quality rum, whisky, brandy, and wine. This professional-grade copper pot still is engineered for both large-scale and craft distilleries, offering exceptional performance, flavor extraction, and durability.
Crafted from premium copper, this copper distillation equipment ensures efficient heat transfer and optimal purification, enhancing the taste and quality of your spirits. Perfect for whisky distillation equipment and wine distillation equipment needs, the 2000L capacity allows for high-volume production while maintaining precision and control over the distillation process.
Main Feature:
1. A flexible modular system with free combined components.
2. Optimized FINE Distillation Columns for premium Distillates, is easy to operate and use, easy to clean and occupies a small area.
3. Our high-performance Rectification Columns for effective rectification and cleaning of the distillate easily realize alcohol concentrations of up to 96% vol. at any desired purity level.
4. Efficient CIP spraying ball for 360-degree cleaning, High safety, high work efficiency, long service life, low energy consumption, good quality and low price.
5. Copper Catalytic Converter technology guarantees a reduction of unwanted acid content as well as cyanide and ethyl carbamate levels.
6. The three-way ball valve can be used to make the distillation equipment multi-functional, and different spirits can be made according to customer needs, such as whisky brandy, rum, vodka, gin, tequilas and bourbons etc.
7. Coordinated fine distillation bottoms with maximized copper contact surface, this continuously further developed design ensures that the desired flavors unfold and are separated from unwanted component
8. Italy brand gear box, NEMA standard for North American Market, Explosion proof motor, be CE, UL, CSA approved
Parameter：
| Working capacity: | 2000L |
| Total Volume: | working capacity*130%-150% |
| Voltage: | 200V-240V/380-440V/600V |
| Weight: | 1200kg |
| Material: | SUS3048/SUS316L/COPPER-C12200 |
| Motor: | 3-phase power,UL/CSA/CE/ATEX,or Customizable brand |
| Reducer: | NEMA Standard (Made in Italy);ICE Standard (Made in China) |
| Welding Technolog： | High purity argon arc welding |
| Heating Method: | Steam/Water bath/Oil/Electric/Firewood/Gas |
| Heating form: | Direct or indirect heating |
| Distillation method: | Liquid distillation by default, custom solid distillation can be customized |
| Running time: | 2-8h, Customizable continuous distillation |
| Shape: | Upper and lower heads/Customizable |
| Distilled products: | Gin/Whisky/Vodka/Brandy/Tequila/Rum/Bourbon |
| Optional module: | 1.Cooling water recycling system |
| 2.Light system | |
| 3.Alcohol storage tank system(Head/Heart/Tail) |
DYE's Standard Features Guarantee Your Safety:
1. Explosion-proof mixing motor ,UL/CSA/ATEX Compliant certification based on your local power department needs.
2. Explosion-proof light,24V/DC.
3. Electrical controls that comply with Class 1,Division 1 directives.
4. Cooling water abnormal alarm and emergency shutdown system.
5. Fully closed spirit safe.
6. Equipment is manufactured and designed in accordance with ASME BPVC VIII.
