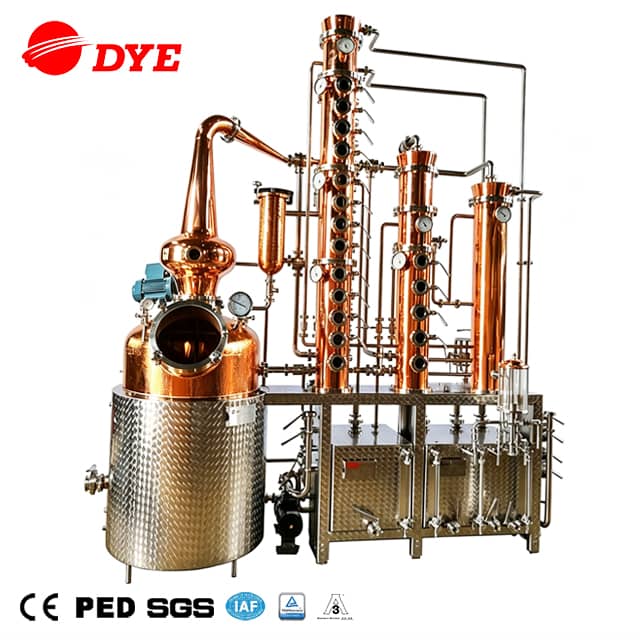

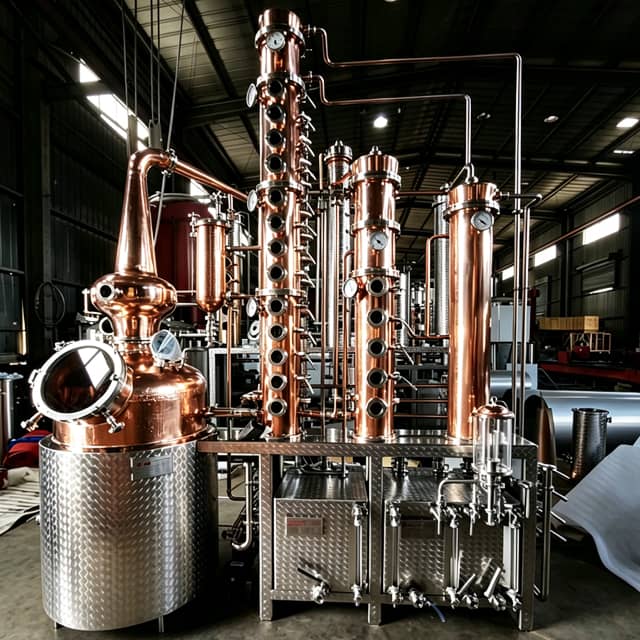

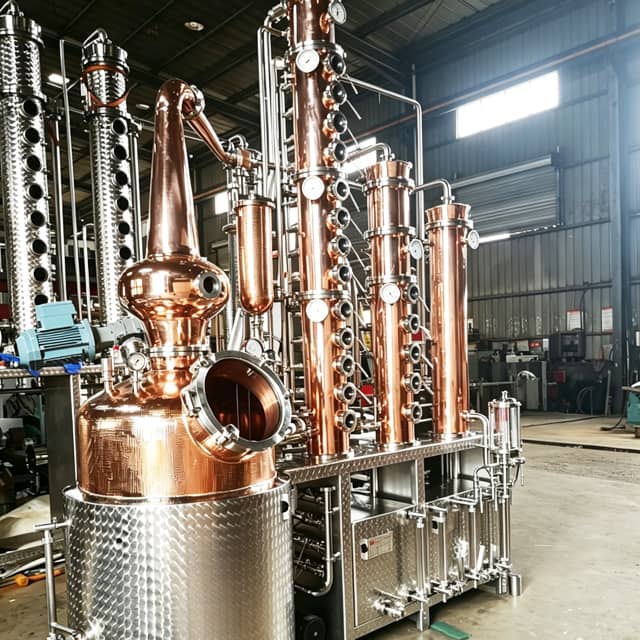

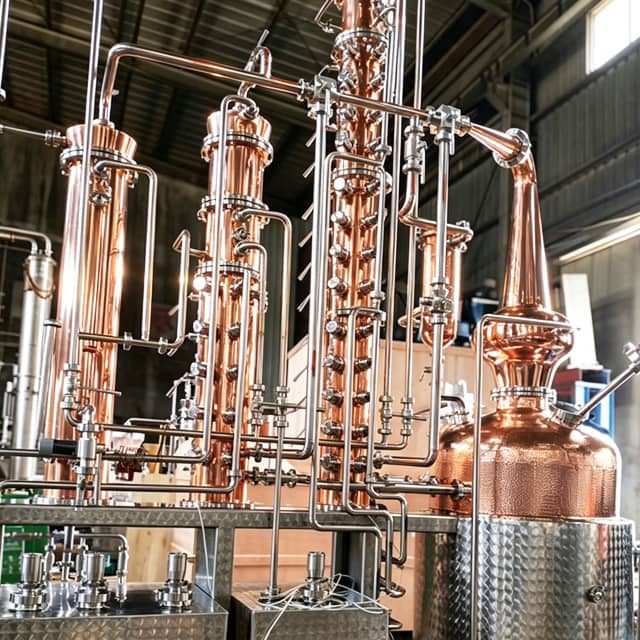

300L Electric copper gin distillery equipment for sale

300L copper still,electric heating,4+12plates. Used for whiskey,gin,rum,vodka
Availability:
Quantity:
  • DYE-III

  • DYE

  • HS Code: 8419409090


300L Electric copper gin distillery equipment

This copper distiller combines traditional craftsmanship with modern technology, ensuring optimal flavor extraction and purity in every batch. Ideal for gin, vodka, and other spirits, this unit is perfect for small to medium-scale distilleries.

Featuring a 300L capacity and electric heating, this vodka still provides precise temperature control for consistent results. The integrated distiller column enhances the distillation process, allowing for superior separation and refinement. Whether you're upgrading your existing setup or starting a new distillery, this electric distillation equipment offers reliability, ease of use, and exceptional performance.


Main Features:

1.300L capacity copper distiller for gin, vodka, and other spirits

2.Electric distillation equipment for efficient, precise operation

3.Integrated distiller column for superior separation and purity

4.High-quality distilling equipment for small to medium-scale production

5.Distillation equipment of various sizes can be customized to meet your needs

6.Provide distillation equipment drawings


Parameter:

Material SUS304 and Copper CU12200
Main Structure Kettle+ Helmet+Gin basket+Distilling Column+ Dephlegmator+ Condenser+ Column Base+ parrot outlet
Heating Mode Electric Heating/ Steam heating/ Gas Heating
Function suitable for making gin,whirskey

 300L Electric copper gin distillery equipment

DYE Distiller and Brewery CertificationDYE Distiller and Brewery Quality Control InstrumentDYE Distiller and Brewery Project Cases


Details

Kettle

Material
red copper
Size
300L
Shape
dish top and bottom
Heating method
Steam,electric,gas
Structure
Jacket with PU insulation
Accessories
Top with agitator,ex-proof motor with UL/CE/CSA approved,CIP balls,pressure gauge,relief valve,manway and so on

Bubble Caps and Trays:

 All bubble caps and screw are made of T2 grade red copper, the screw is designed by our company without dead corner and 100% meets sanitary standard.
Size: DN26/DN38/DN45/DN52/DN65/DN76

Dephlegmator:

 on the top of distillation column that sends vapor back toward the boiler.
Material: Stainless steel 304/ red copper with flange connection.
Structure: tube type jeat exchanger with cooling water inlet and outlet.

Condenser:

A heat exchanger in which hot vapors are cooled and condensed into liquid.
Material: stainless steel 304/ red copper and connected by flange.

Column Support:

 All support are made of stainless steel 304, and we also can use storage tank as support.

CIP Pump and Pipe Fittings:

All the CIP centrifugal pump is ex-proof with UL/ CSA/ CE certificate.
And we can supply hand valve and automatic valve.

Accessories:
