The Vodka Still Multi-column Distillation Equipment is designed for both professional distilleries and passionate craft distillers looking to produce high-quality spirits. Engineered with copper construction, this advanced spirit distillery system provides superior heat conduction and excellent purification, ensuring the finest vodka with every batch.
1. Multi-column Distillation: Our system features a multi-column design for efficient separation of alcohol components, optimizing the purity of your vodka while maintaining consistent high-quality results.
2. Premium Copper Construction: Copper is known for its natural ability to remove sulfur compounds and enhance the flavor profile of spirits. The copper material ensures better taste and smoother finish in your vodka.
3. High Purity Output: This multi-column vodka still system is engineered for high-efficiency distillation, producing ultra-pure alcohol, free from unwanted byproducts, resulting in crystal-clear vodka.
4. Customizable Capacity: Available in various sizes to accommodate both small craft distilleries and larger-scale production needs.
5. Durable and Reliable: Built with top-quality materials, the system is designed to last and withstand the demands of regular distillation.

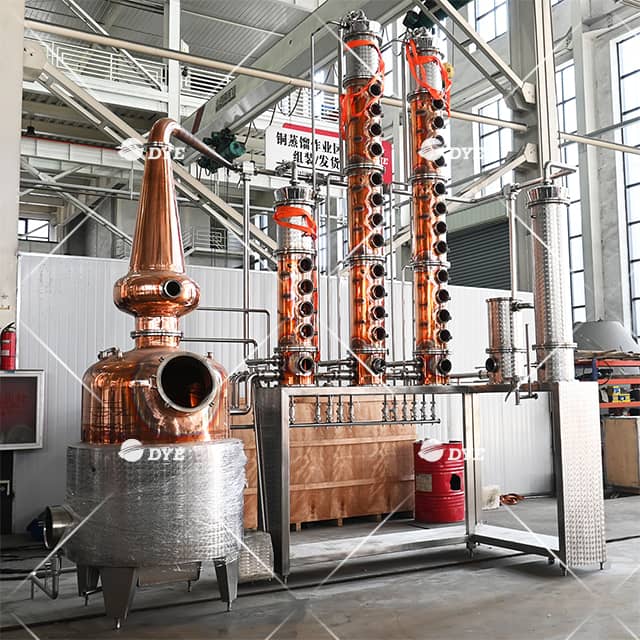

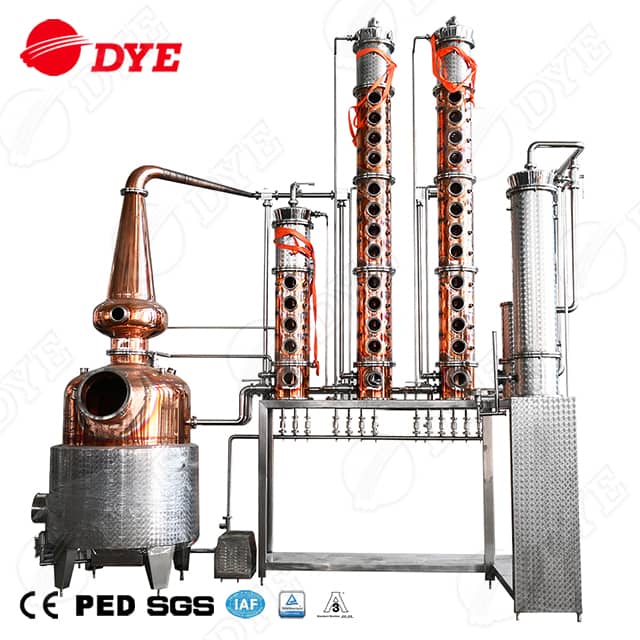

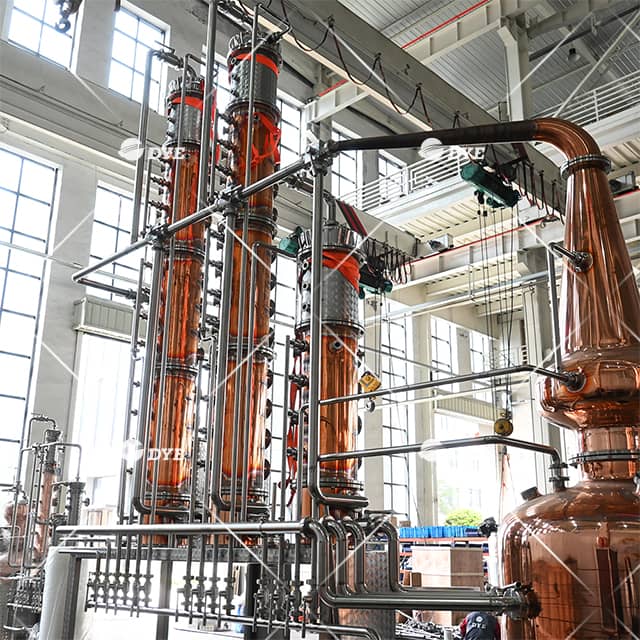

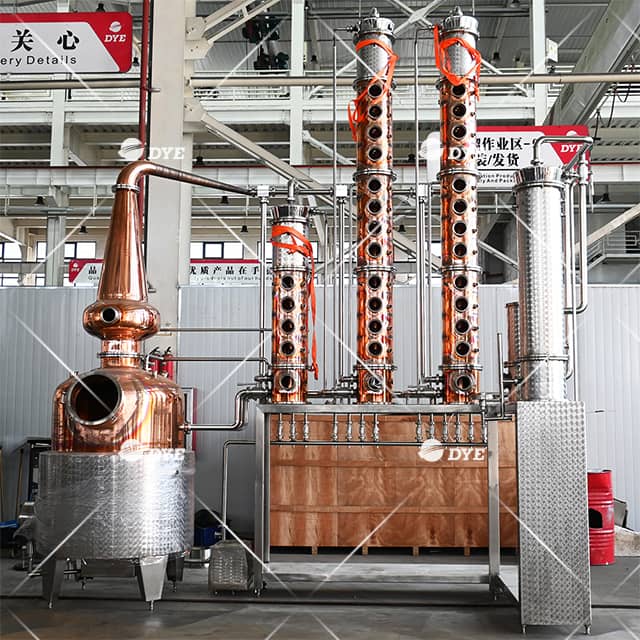

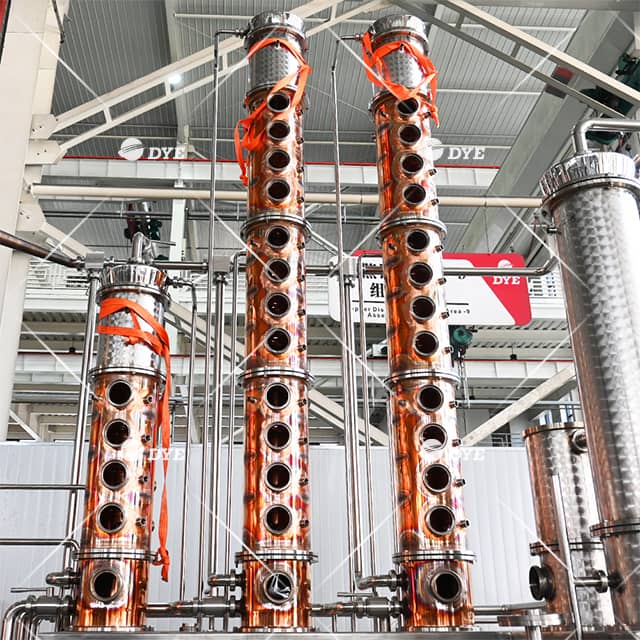

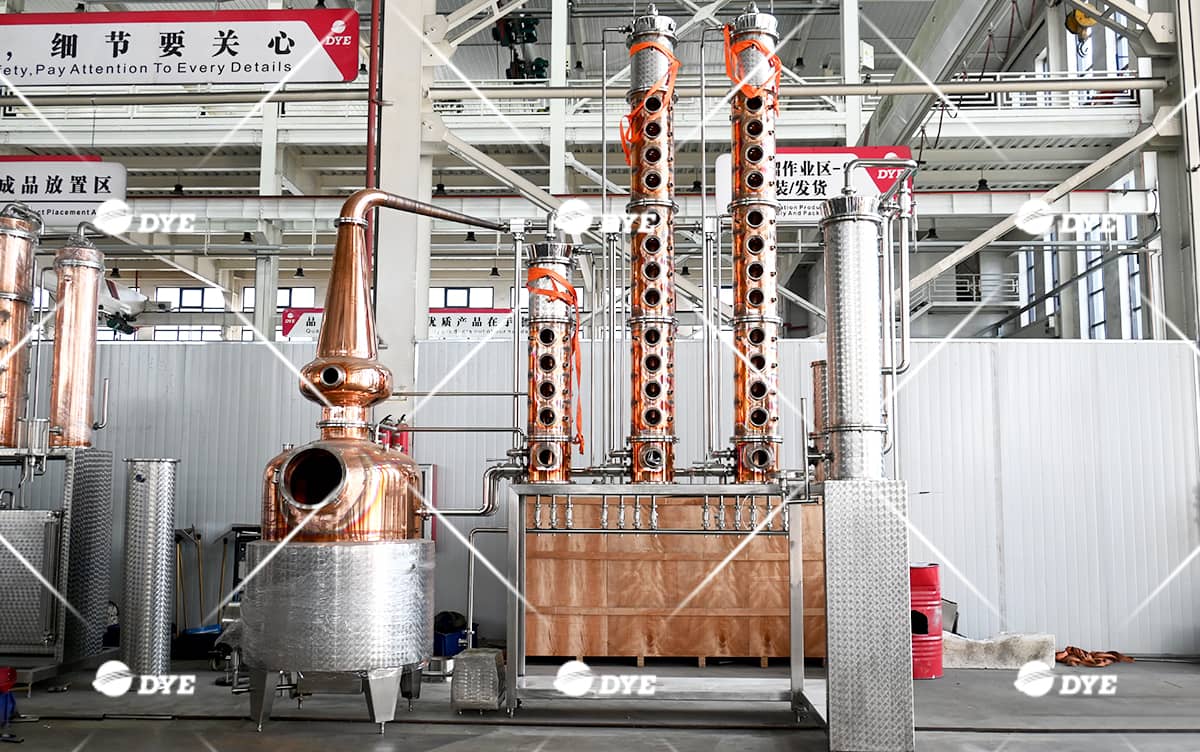

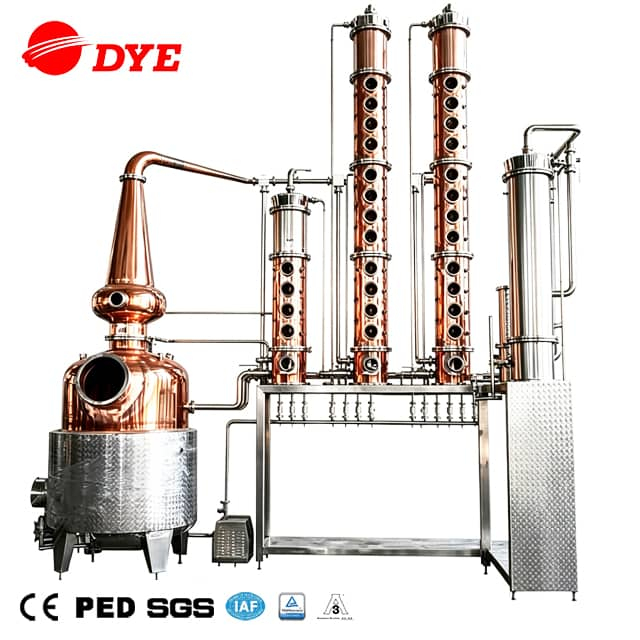

| Structure: | DYE-IV still is composed of 1x still pot, 1x gooseneck（helmet),1x whiskey column, 1x vodka column,2 x dephlegmators, 1x condenser, 1x parrot outlet（spirit safe), liquor collecting tank, and support frame（leg）. The system can be equipped with CIP pumps and CIP pipes. |
| Useage： | It is mainly used for the production of whiskey, brandy, rum, vodka.Acohol content can approach up to 96% ABV. |
| Working Capacity： | From 100L~10000L customizable |
| Heating Method： | Steam/Electric heating/Gas burner/Direct fire optional |
| Voltage Supply： | 110/208/200/220/240/380/400/415/460/480/600V 3phase 50/60Hz，Special voltages can be customized |
| Certification of Motor： | UL/CSA/CE/IECEX/ATEX option |
| If heated by electrical： | CE/IECEX/ATEX/NEPSI certified electric heating elements are available |
| Material： | Stainless steel 304/ Stainless steel 316L/ C12200 copper/glass optional |
| Control section： | Manual/semi-automatic /PLC control/fully automatic control optional |
1. Enhanced Flavor and Purity: The combination of copper’s superior heat conductivity and the multi-column design guarantees a smooth, refined taste in every drop of vodka.
2. Energy Efficiency: The system’s design maximizes energy efficiency, reducing operational costs and increasing overall productivity.
3. Ideal for Vodka and Other Spirits: While perfect for vodka distillation, this system can also be used for other spirits like brandy, rum, and whiskey.
Whether you’re a commercial distillery or a craft spirit producer, the Vodka Still Multi-column Distillation Equipment is your go-to solution for high-quality vodka distillation. Elevate your product with the professional-grade design of this copper spirit distillery system.
Order Now and start producing the purest, finest vodka with the latest in distillation technology.
