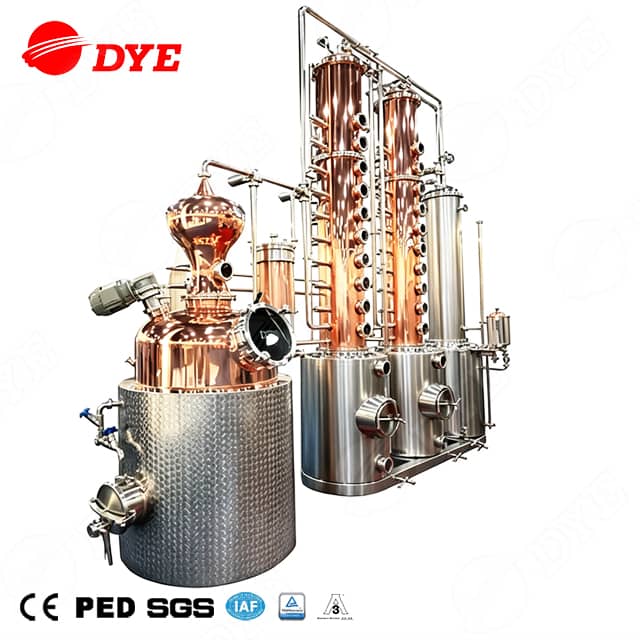

DYE 300L Distillation Equipment Still - Stainless Steel Moonshine Pot Still
Elevate your distillation process with the DYE 300L Distillation Equipment Still, specifically designed for whisky production. This high-capacity whisky distillery unit features a robust stainless steel construction that ensures durability and resistance to corrosion, making it a reliable choice for any alcohol distillery.
Ideal for crafting premium whisky, this 300L distillation equipment still is engineered for efficiency, offering exceptional heat retention and consistency during the distillation process. Its versatile design allows for easy integration into existing setups, making it suitable for both small-scale and commercial operations.
Main Features:
1. A flexible modular system with free combined components.
2. Optimized FINE Distillation Columns for premium Distillates
3. Our high-performance Rectification Columns for effective rectification and cleaning of the distillate easily realize alcohol concentrations of up to 96% vol. at any desired purity level.
4. Effective cleaning of the entire distillation unit by means of integrated high-pressure rinsing system.
5. Copper Catalytic Converter technology guarantees a reduction of unwanted acid content as well as cyanide and ethyl carbamate levels.
6. The three-way ball valve can be used to make the distillation equipment multi-functional, and different spirits can be made according to customer needs.
7. COORDINATED FINE DISTILLATE BOTTOMS WITH maximized copper contact surface.This continuously further developed design ensures that the desired flavors unfold and are separated from unwanted component
Parameter:
| Working capacity: | 100-5000L |
| Total Volume: | working capacity*130%-150% |
| Voltage: | 200V-240V/380-440V/600V |
| Weight: | 500kg-5000kg |
| Material: | SUS3048/SUS316L/COPPER-C12200 |
| Motor: | 3-phase power,UL/CSA/CE/ATEX,or Customizable brand |
| Reducer: | NEMA Standard (Made in Italy);ICE Standard (Made in China) |
| Welding Technolog： | High purity argon arc welding |
| Heating Method: | Steam/Water bath/Oil/Electric/Firewood/Gas |
| Heating form: | Direct or indirect heating |
| Distillation method: | Liquid distillation by default, custom solid distillation can be customized |
| Running time: | 2-8h,Customizable continuous distillation |
| Shape: | Upper and lower heads/Customizable |
| Distilled products: | Gin/Whisky/Vodka/Brandy/Tequila/Rum/Bourbon |
| Optional module: | 1.Cooling water recycling system 2.Light system 3.Alcohol storage tank system(Head/Heart/Tail) |
