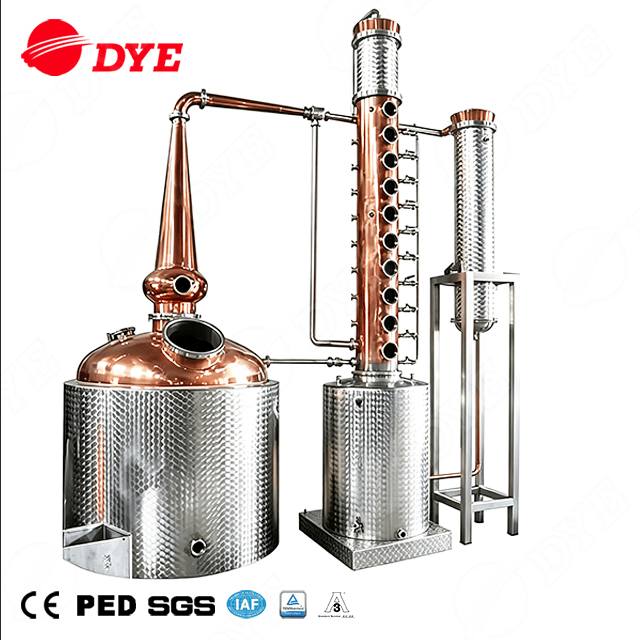

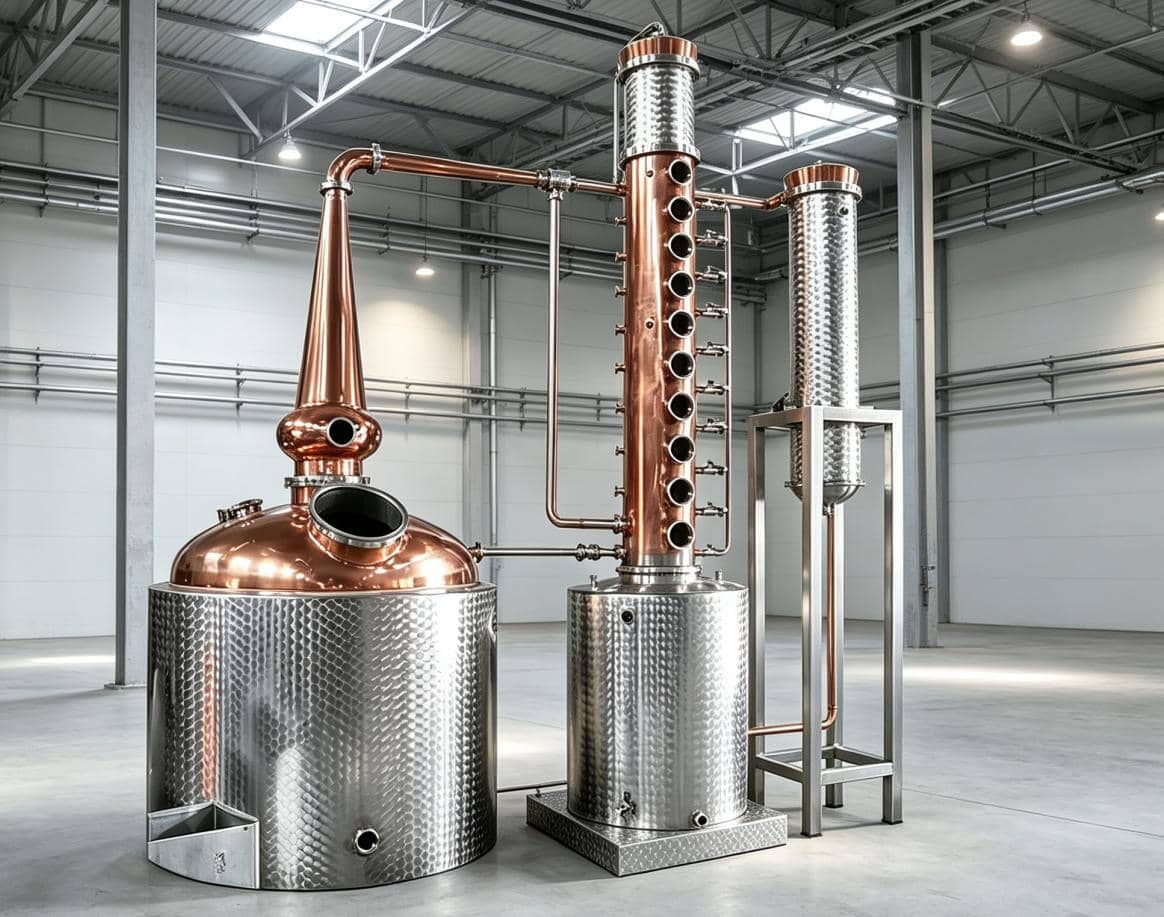

Pot: 1000L working capacity; Copper CU12200 dished top with other part SUS304
SUS304 Steam jacketed and insulated
with 219mm handhole with DN51 outlet and valve
Copper Cu12200 Gooseneck
350mm Copper Distillation Column, 9 plates copper distillation, 3mm thickenss, each plate has drain valves.
350mm SS Dephlegmator on the top of column
SS Storage Tank Column Support, 3mm thickness
350mm SS Condenser
SS parrot outlet
SS Frame Condenser Support
Steam requirment: 100Kg/Hr
Production time: 4 hours
Max alcohol reached to 85%/ 170 Proof
(1) Designed with German technology & traditional Chinese distillation equipment, and feedback from several trials and foreign customers.
(2) Good sealing reduces waste , increase the wine yield (5%-10%) and improve quality.
(3) One machine and dual usage. It could make whisky,rum,brandy,tequila etc.by once running of the distiller.By twice distillation the alcohol content will up to 95% and it can also remove methanol.
(4) Fast heat conduction can save energy.The material of our distiller are thicker than stills offered by many other manufacturers. We use C12200 red copper as our copper material. It is a special material for pressure vessles and contains 99.9% pure copper, which makes good performance on heat treatment.
(5) Less waste and save labor. also easy to operate and control
(6) The material can be grains,fruits,molases,low content alcohol.
(7) The equipment is made of stainless steel and copper, with beautiful appearance and high sanitary level.
(8) Save floor space and greatly improve the hygiene of the entire distillation site for you.
