1200L Commercial Steam Heating Alcohol Distiller

1200L-II,steam heating,8plates column
Availability:
Quantity:
  • DYE-II

  • DYE

  • HS: 8438400000


1200L Commercial Steam Heating Alcohol Distiller

Boost your distillation capabilities with our 1200L Commercial Steam Heating Alcohol Distiller—the ideal solution for large-scale spirit production. This state-of-the-art alcohol distillation equipment is designed for serious distillers, providing exceptional efficiency and quality for all your distilling needs.

Featuring a robust construction, this copper still ensures optimal heat distribution and effective steam heating, resulting in superior flavor extraction and purity in every batch. Perfect for a variety of applications, this distiller is well-suited for both gin distillery and whisky distillery operations, enabling you to craft a wide range of high-quality spirits.



Main Features:

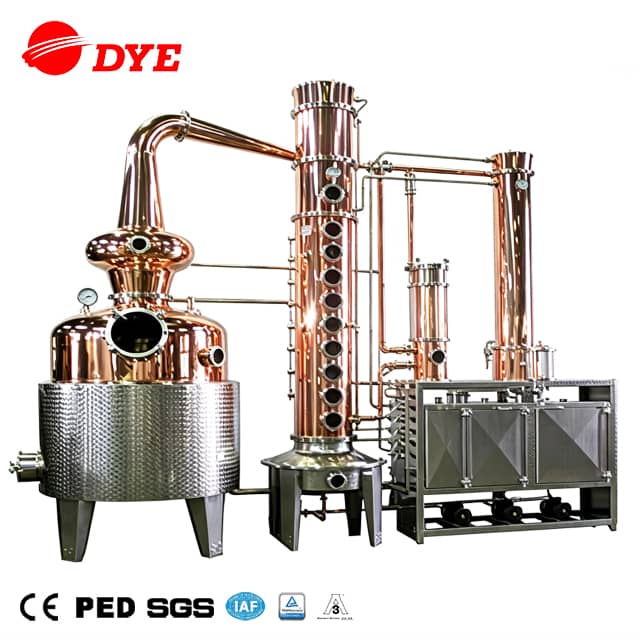

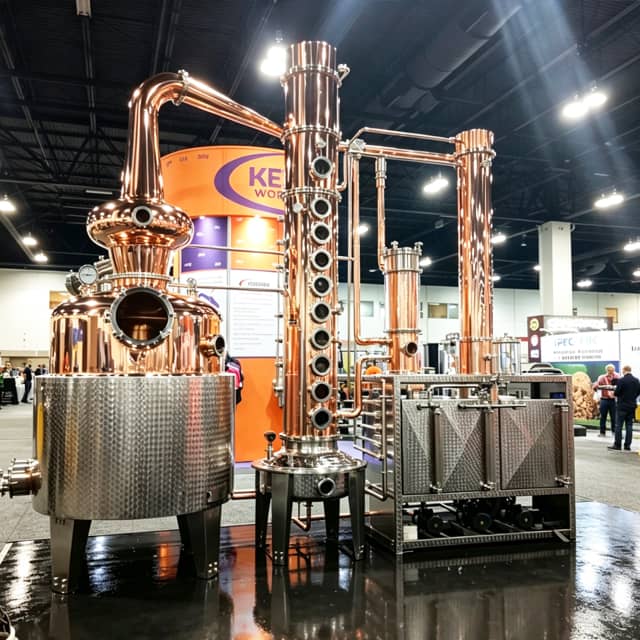

1. The picture is of our 1200L Jacketed, Steam Heated, Pro Series Gin Stills.

2. This still will produce great Whiskey, Gin and everything in between.

3. This Still comes with one Copper Column.

4. The individual Plate Drain Valves in the 8 Plate Copper Whiskey Column can be opened or closed allowing for better control of flavor profiles and proof.

5. The Stainless Steel Whisky Column has 8 bubble plates and a Dephlegmator in the top.

6. The 8 plate Whiskey Column will produce up to 190 proof in one run.

7. If you want to do a stripping run, you simply open the Plate Drain Valves in the Copper Whiskey Column.

8. This 1200L Still must be heated by low pressure steam boiler.

9. This Still is great for producing Whiskey, Bourbon, Moonshine, Brandy, Rum and Gin (with the optional Gin Basket).

10. Advanced steam heating technology for efficient distillation and enhanced flavor profiles

11. Durable copper construction for superior heat conduction and longevity



Parameter:

Working capacity:

100-5000L

Total Volume:

working capacity*130%-150%

Voltage:

200V-240V/380-440V/600V

Weight:

500kg-5000kg

Material:

SUS3048/SUS316L/COPPER-C12200

Motor:

3-phase power,UL/CSA/CE/ATEX,or Customizable brand

Reducer:

NEMA Standard (Made in Italy);ICE Standard (Made in China)

Welding Technolog:

High purity argon arc welding

Heating Method:

Steam/Water bath/Oil/Electric/Firewood/Gas

Heating form:

Direct or indirect heating

Distillation method:

Liquid distillation by default, custom solid distillation can be customized

Running time:

2-8h,Customizable continuous distillation

Shape:

Upper and lower heads/Customizable

Distilled products:

Gin/Whisky/Vodka/Brandy/Tequila/Rum/Bourbon

Optional module:

1.Cooling water recycling system
2.Light system
3.Alcohol storage tank system(Head/Heart/Tail)
