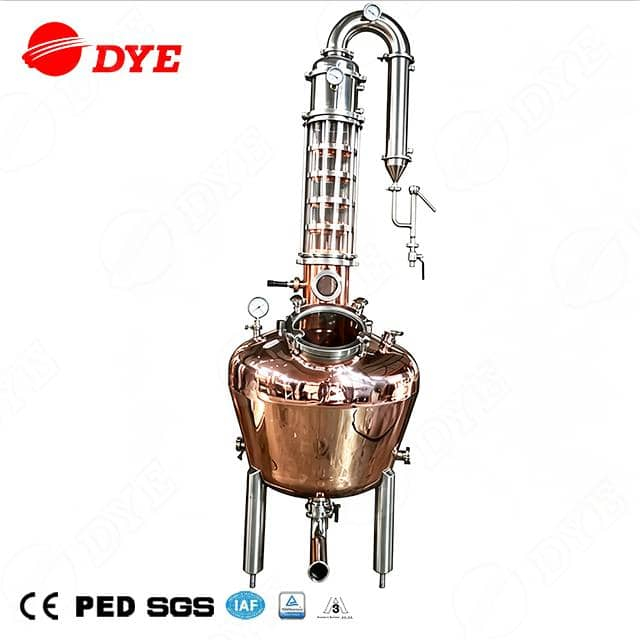

250LGlass Copper Distillation Column Ethanol distiller

  • ZLSB-004

  • DYE

Main Features:

1. Designed with German technology &  traditional Chinese distillation equipment, and feedback from several trials and foreign customers.

2. Good sealing reduces waste , increase the wine yield (5%-10%) and improve quality.

3. Fast heat conduction can save energy.The material of our distiller are thicker than stills offered by many other manufacturers. We use C12200 red copper as our copper material. It is a special material for pressure vessles and contains 99.9% pure copper, which makes good performance on heat treatment.

4. Less waste and save labor.  also easy to operate and control

5. The material can be grains,fruits,molases,low content alcohol.

6. The equipment is made of stainless steel and copper, with beautiful appearance and high sanitary level.

7. Save floor space and greatly improve the hygiene of the entire distillation site for you.

8. Provide customized services, technical and drawing support

9. Efficient CIP spraying ball for 360-degree cleaning



Working capacity: 50L-200L
Total Volume: working capacity*130%-150%
Voltage: 200V-240V/380-440V/600V
Weight: 25kg-60kg
Material:  SUS3048/SUS316L/COPPER-C12200
Motor: 3-phase power,UL/CSA/CE/ATEX,or Customizable brand
Reducer: NEMA Standard (Made in Italy);ICE Standard (Made in China)
Welding Technolog: High purity argon arc welding
Heating Method: Steam/Water bath/Oil/Electric/Firewood/Gas
Heating form: Direct or indirect heating
Distillation method: Liquid distillation by default, custom solid distillation can be customized
Running time: 2-8h,Customizable continuous distillation
Shape:  Upper and lower heads/Customizable
Distilled products: Gin/Whisky/Vodka/Brandy/Tequila/Rum/Bourbon
Optional module:  1.Cooling water recycling system
2.Light system
3.Alcohol storage tank system(Head/Heart/Tail)




 Daeyoo Tech. Co., LTD.Wenzhou is a comprehensive emerging enterprise that integrates product design, research and development, manufacturing and engineering. DYE is at forefront of the R & D and manufacturing of distillation equipment in China and also one of the first manufacturers of copper distillers to learn and produce red copper distillers.
