2000L alembic handmade copper still leaf distillation equipment

2000L-II still,steam heating
Availability:
Quantity:
  • DYE-II

  • DYE

  • HS: 8438400000


2000L alembic handmade copper still leaf distillation equipment

Elevate your distilling game with our 2000L Alembic Handmade Copper Still Leaf Distillation Equipment. This exquisite piece of Alcohol Distillation Equipment is designed for those who demand excellence in both craftsmanship and performance. Perfect for gin distilling and whisky production, this copper still is the heart of any alcohol distillery or gin distillery.


Main Features:

1.Handmade Craftsmanship: Each still is meticulously handcrafted, ensuring top-quality construction and exceptional durability. The traditional design not only looks stunning but also enhances the distillation process, allowing for superior flavor extraction.

2.Optimal Performance: With a generous 2000L capacity, this still is perfect for large-scale production, making it ideal for professional distillers or serious hobbyists looking to create high-quality spirits.

3.Versatile Applications: Whether you're focusing on gin distilling or exploring the world of whisky, this still provides the versatility needed to craft a wide range of spirits. Experience the art of distillation like never before!

4.Efficient Distillation: The design of our Whisky Distillation Equipment ensures effective heat distribution, maximizing alcohol yield and preserving the aromatic qualities of your ingredients.

5.Enhanced Flavor Profiles: The copper material reacts with sulfur compounds in the distillation process, improving the overall taste and quality of your spirits, whether it’s gin, whisky, or any other distilled beverage.


Why Choose Our Copper Still?

Invest in our 2000L Alembic Handmade Copper Still and experience the difference that quality equipment makes. This Alcohol Distillation Equipment not only enhances your distillation capabilities but also adds an elegant touch to your distillery setup.

Transform your distilling experience and produce exceptional spirits with this remarkable copper still. Order today and take the first step towards crafting premium gin and whisky!


Parameter:

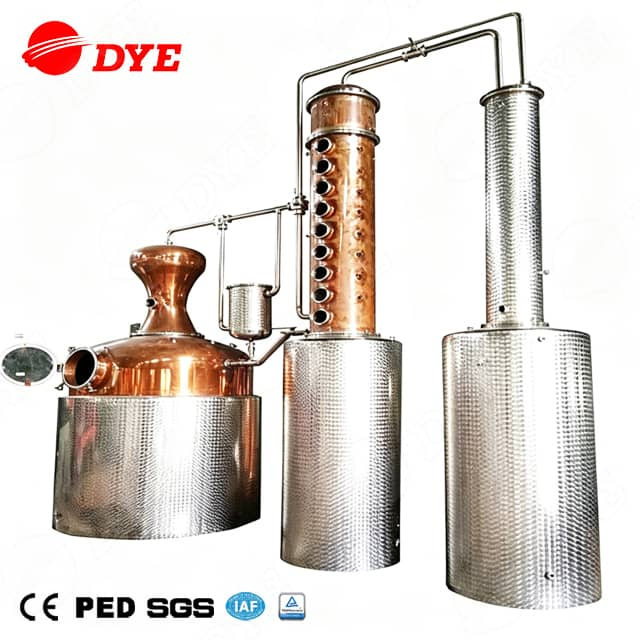

Specification The picture is of our 2000L Jacketed, Steam Heated, Pro Series Gin Stills.
This still will produce great Whiskey, Gin and everything in between.
This Still comes with one Copper Column.
The individual Plate Drain Valves in the 8 Plate Copper Whiskey Column can be opened or closed allowing for better control of flavor profiles and proof.
The Copper Whisky Column has 8 bubble plates and a Dephlegmator in the top.
The 8 plate Whiskey Column will produce up to 190 proof in one run.
If you want to do a stripping run, you simply open the Plate Drain Valves in the Copper Whiskey Column.
This 2000L Still must be heated by low pressure steam boiler.
This Still is great for producing Whiskey, Bourbon, Moonshine, Brandy, Rum and Gin (with the optional Gin Basket).

DYE Distiller and Brewery CertificationDYE Distiller and Brewery Quality Control InstrumentDYE Distiller and Brewery Project Cases


Pot

Material: Stainless Steel 304, Red Copper T2
Type: 1. single layer ; 2. with heating jacket only; 3. with heating jacket & PU insulation.
Accessories: thermometer, thermowell, pressure guage, pressure relief valve, inlet, outlet, breath valve, reflux hole, glass man hole, CIP ball, etc.

1 pots for referance

Agitator

Material: Stainless Steel 304, Union Connection, easy to installtion.
Voltage: 208V/ 220V/ 240V/ 380V/415V/ 460V etc ( can supply voltage according to customer request,
Exproof motor with CE/ UL / CSA certificate.
2 Agitator


Goose Neck / Vapor Chamber

Material: Stainless Steel / Red Copper
Have different shape for opition.

3 Goose neck

Gin Basket/ Botanical Basket

Enhance flavor and extended the range of your system.
For making Gin, Schnapps, etc.
Material: Stainless Steel/ Red Copper
Inside with removable filter basket, have different shape for opition.

4 gin basket扣_看图王


Distillation Column

We can tailor the height and plate number for your specific application.
The max height of column can reach 2000mm, up to 10 plates within a pair of flange.
For 70-90%abv: 4~6 plates; for 88-95%abv: 6~20 plates

5 Column specs 扣


Bubble Tray / Bubble Cap

The bubble tray intergrated within a tightly embedded inner shell, to avoid welding scar around the column.
Bubble caps and screw are made of red copper, the screw with a no dead corner design, can 100% meet sanitary stand.

The bubble cap have 6 size: DN26/ DN38/ DN45/ DN52/ DN65/ DN76

 5 Bubble caps and trays 扣


Dephlegmator

A chilling apparatus (condenser) at the top of the reflux column.
It's comprised of a bank of tubes with cold water running through them. This increase reflux, and the purity o f the distillate.
Material: Red Copper / Stainless Steel 304L
Structual tube type heat exchanger, with cooling water inlet and outlet
with a sight glass (optional) and thermometer in the top.

6


Condenser

A heat exchanger in which hot vapors are cooled and condensed into liquid.
Material: Red Copper / Stainless Steel 304
Structural tube type heat exchanger; with cooling water inlet and outlet.
With a thermometer.

for stainless steel condenser, the surface can finished as scaled.

13 Condenser 扣


Parrot Outlet

Material: Stainless Steel 304/ Glass/ Red Copper
Can supply different shape of spirit safety according to customer's request.

11 Parrots 扣

CIP Pump & Pipe Fitting

All stainless steel 304 pipe fitting with a Ex-proof centrifugal pump (UL/ CSA/ CE )
Have Hand Valve and Automatic Valve for opition.

7 CIP pumps and pipe fittings 扣

Support leg

All support are made of stainless steel 304
Can shaped as customers request.

5 column base 扣


Alcohol Collecting Tank

Used for storage spirit of head, heart and tails.
Can do as different shape.
Structure: Single layer

12 Collection tanks after distilling equipment 扣






7DYE-I Whisky still

Working Capacity: 250L

All copper inner pot with SUS304 jacket & PU foam insulation

Electric oil bath heating with control box

Power consumption: 3*7kw electric heater ( or 25kg/h steam heating)

Agitator: 0.75kw motor, explosion proof with UL & CSA & CE approved

Copper helemt: ball shape (also have other shape for choice)

4 Plates Copper column:  16 inch / 400mm

Copper dephlegmator : shell and tube type

Copper condenser : shell and tube type

Copper parrot with glass proof

SUS304 CIP system: CIP ball & no-return ball, CIP pipe, CIP pump

SUS304 alcohol collecting tank: 300L

Bypass system: from pot to condenser directly

Price: 30000USD-45000USD


01

DYE-II Gin still

Working Capacity: 300L

All copper inner pot with SUS304 jacket & PU foam insulation

Electric oil bath heating with control box

Power consumption: 3*8kw electric heater ( or 30kg/h steam heating)

Agitator: 0.75kw motor, explosion proof with UL & CSA & CE approved

Copper helemt: cone shape (also have other shape for choice)

4 Plates Copper column:  8 inch / 219mm

Copper Dephlegmator : shell and tube type

SUS304 Gin basket: inner with copper basket

SUS304 Condenser : shell and tube type

SUS304 Parrot with glass proof

SUS304 CIP system: CIP ball & no-return ball, CIP pipe, CIP pump

SUS304 alcohol collecting tank: 300L

Bypass system: from pot to condenser / from pot to gin basket to condenser / from pot to column to condenser

Price: 23000-33000USD.


1

DYE-III Multi-Purpose still

Working Capacity: 1000L

Upper copper inner pot with SUS304 jacket & PU foam insulation

Steam heating without control box

Power consumption:  100kg/h steam heating  (or 6*10kw electric heaters)

Agitator: 1.1kw motor, explosion proof with UL & CSA & CE approved

Copper helemt: mushroom shape (also have other shape for choice)

Glass Gin basket: inner with copper basket

4 Plates + 16 Plates Copper column:  14 inch / 350mm

SUS304 Dephlegmator : shell and tube type

SUS304 Condenser : shell and tube type

SUS304 Parrot with glass proof

SUS304 CIP system: CIP ball & no-return ball, CIP pipe, CIP pump

Bypass system: from pot to condenser / from pot to gin basket to condenser / from pot to column to condenser. etc.

Price: 60000USD-85000USD.


01

DYE-IV Vodka still

Working Capacity: 1000L

Upper copper inner pot with SUS304 jacket & PU foam insulation

Steam heating without control box

Power consumption:  100kg/h steam heating  (or 6*10kw electric heaters)

Agitator: 1.1kw motor, explosion proof with UL & CSA & CE approved

Copper helemt: mushroom shape (also have other shape for choice)

4 Plates + 12 Plates Copper column:  14 inch / 350mm

Copper Dephlegmator : shell and tube type

Copper Catalyst : filled with copper material

SUS304 Condenser : shell and tube type

SUS304 Parrot with glass proof

SUS304 CIP system: CIP ball & no-return ball, CIP pipe, CIP pump

SUS304 Alcohol storage tank for hearts, heads & tails

Bypass system: from pot to condenser / from pot to high column to condenser / from pot to short column to condenser.

Price: 60000USD-85000USD.
