200L Copper Distillery Equipment for Prime Whisky Gin Distilling

200L-II still with electric heating
Availability:
Quantity:
  • DYE-II

  • DYE

  • HS: 8438400000


200L Copper Distillery Equipment for Prime Whisky Gin Distilling

This high-performance alcohol distillation equipment is perfect for producing premium-quality whisky, gin, and other spirits. The 200L capacity makes it ideal for both small distilleries and craft producers looking to expand production.

Made from premium copper, this copper still enhances the flavor and purity of your spirits by ensuring efficient heat distribution and optimal extraction of impurities. Whether you're running a gin distillery or a full-scale alcohol distillery, this equipment is engineered to deliver consistent results with every batch.


Main Feature:

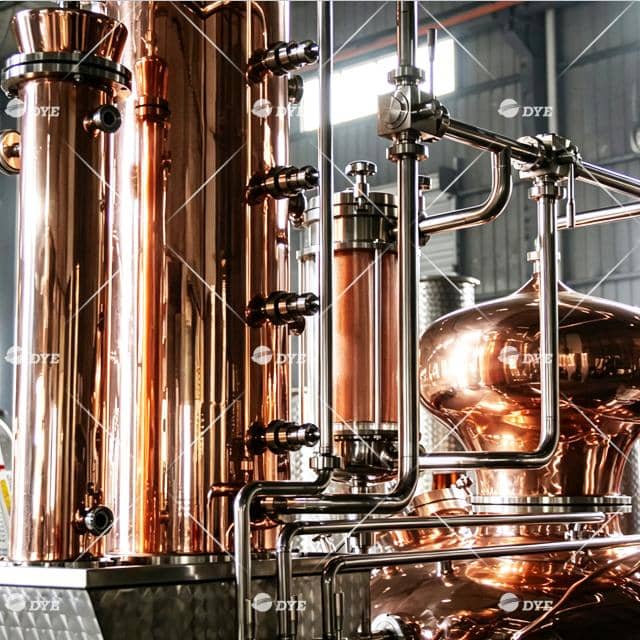

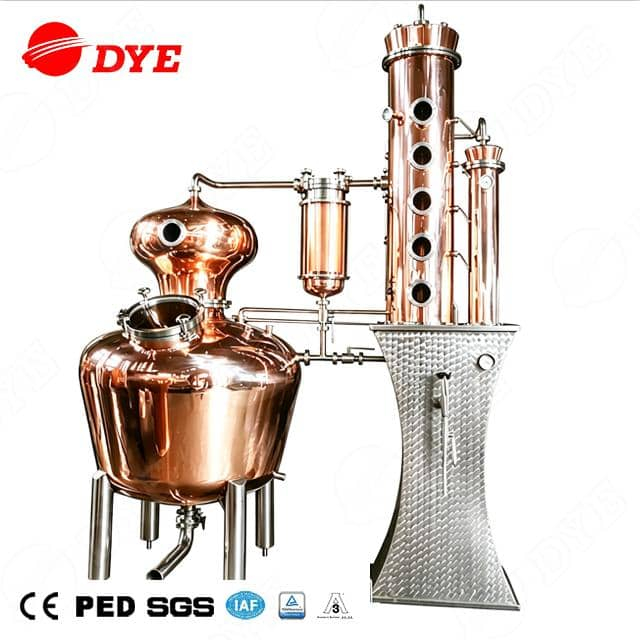

1.The Picture above is of our 200L Electric Heated, Gin Still.

2.These copper stills can be heated by electric or gas.

3.This 200L still could be used for distilling whisky,rum,gin.

4.It is single-layer copper,with gin basket and 4plates column.

5.We can customize the still to fit your building. Customization is no problem. We can make this alcohol distillery with any size boiler or column diameter.

6.Design and capabilities is for small to medium scale production of vapor infused spirits at maximum proof. Proof changes & flavor profile manipulation can be accomplished with the column plate drains.

DYE Distiller and Brewery CertificationDYE Distiller and Brewery Quality Control InstrumentDYE Distiller and Brewery Project Cases

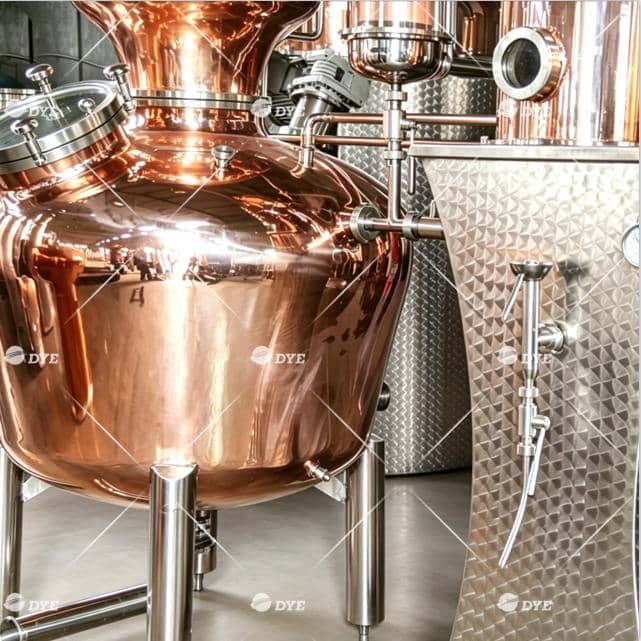

Pot

Material: Stainless Steel 304, Red Copper T2
Type: 1. single layer ; 2. with heating jacket only; 3. with heating jacket & PU insulation.
Accessories: thermometer, thermowell, pressure guage, pressure relief valve, inlet, outlet, breath valve, reflux hole, glass man hole, CIP ball, etc.

1 pots for referance

Agitator

Material: Stainless Steel 304, Union Connection, easy to installtion.
Voltage: 208V/ 220V/ 240V/ 380V/415V/ 460V etc ( can supply voltage according to customer request,
Exproof motor with CE/ UL / CSA certificate.
2 Agitator


Goose Neck / Vapor Chamber

Material: Stainless Steel / Red Copper
Have different shape for opition.
3 Goose neck

Gin Basket/ Botanical Basket

Enhance flavor and extended the range of your system.
For making Gin, Schnapps, etc.
Material: Stainless Steel/ Red Copper
Inside with removable filter basket, have different shape for opition.

4 gin basket扣_看图王


Distillation Column

We can tailor the height and plate number for your specific application.
The max height of column can reach 2000mm, up to 10 plates within a pair of flange.
For 70-90%abv: 4~6 plates; for 88-95%abv: 6~20 plates

5 Column specs 扣


Bubble Tray / Bubble Cap

The bubble tray intergrated within a tightly embedded inner shell, to avoid welding scar around the column.
Bubble caps and screw are made of red copper, the screw with a no dead corner design, can 100% meet sanitary stand.

The bubble cap have 6 size: DN26/ DN38/ DN45/ DN52/ DN65/ DN76

 5 Bubble caps and trays 扣


Dephlegmator

A chilling apparatus (condenser) at the top of the reflux column.
It's comprised of a bank of tubes with cold water running through them. This increase reflux, and the purity o f the distillate.
Material: Red Copper / Stainless Steel 304L
Structual tube type heat exchanger, with cooling water inlet and outlet
with a sight glass (optional) and thermometer in the top.

6


Condenser

A heat exchanger in which hot vapors are cooled and condensed into liquid.
Material: Red Copper / Stainless Steel 304
Structural tube type heat exchanger; with cooling water inlet and outlet.
With a thermometer.

for stainless steel condenser, the surface can finished as scaled.

13 Condenser 扣


Parrot Outlet

Material: Stainless Steel 304/ Glass/ Red Copper
Can supply different shape of spirit safety according to customer's request.

11 Parrots 扣

CIP Pump & Pipe Fitting

All stainless steel 304 pipe fitting with a Ex-proof centrifugal pump (UL/ CSA/ CE )
Have Hand Valve and Automatic Valve for opition.

7 CIP pumps and pipe fittings 扣

Support leg

All support are made of stainless steel 304
Can shaped as customers request.

5 column base 扣


Alcohol Collecting Tank

Used for storage spirit of head, heart and tails.
Can do as different shape.
Structure: Single layer

12 Collection tanks after distilling equipment 扣






7DYE-I Whisky still

Working Capacity: 250L

All copper inner pot with SUS304 jacket & PU foam insulation

Electric oil bath heating with control box

Power consumption: 3*7kw electric heater ( or 25kg/h steam heating)

Agitator: 0.75kw motor, explosion proof with UL & CSA & CE approved

Copper helemt: ball shape (also have other shape for choice)

4 Plates Copper column:  16 inch / 400mm

Copper dephlegmator : shell and tube type

Copper condenser : shell and tube type

Copper parrot with glass proof

SUS304 CIP system: CIP ball & no-return ball, CIP pipe, CIP pump

SUS304 alcohol collecting tank: 300L

Bypass system: from pot to condenser directly

Price: 30000USD-45000USD


01

DYE-II Gin still

Working Capacity: 300L

All copper inner pot with SUS304 jacket & PU foam insulation

Electric oil bath heating with control box

Power consumption: 3*8kw electric heater ( or 30kg/h steam heating)

Agitator: 0.75kw motor, explosion proof with UL & CSA & CE approved

Copper helemt: cone shape (also have other shape for choice)

4 Plates Copper column:  8 inch / 219mm

Copper Dephlegmator : shell and tube type

SUS304 Gin basket: inner with copper basket

SUS304 Condenser : shell and tube type

SUS304 Parrot with glass proof

SUS304 CIP system: CIP ball & no-return ball, CIP pipe, CIP pump

SUS304 alcohol collecting tank: 300L

Bypass system: from pot to condenser / from pot to gin basket to condenser / from pot to column to condenser

Price: 23000-33000USD.


1

DYE-III Multi-Purpose still

Working Capacity: 1000L

Upper copper inner pot with SUS304 jacket & PU foam insulation

Steam heating without control box

Power consumption:  100kg/h steam heating  (or 6*10kw electric heaters)

Agitator: 1.1kw motor, explosion proof with UL & CSA & CE approved

Copper helemt: mushroom shape (also have other shape for choice)

Glass Gin basket: inner with copper basket

4 Plates + 16 Plates Copper column:  14 inch / 350mm

SUS304 Dephlegmator : shell and tube type

SUS304 Condenser : shell and tube type

SUS304 Parrot with glass proof

SUS304 CIP system: CIP ball & no-return ball, CIP pipe, CIP pump

Bypass system: from pot to condenser / from pot to gin basket to condenser / from pot to column to condenser. etc.

Price: 60000USD-85000USD.


01

DYE-IV Vodka still

Working Capacity: 1000L

Upper copper inner pot with SUS304 jacket & PU foam insulation

Steam heating without control box

Power consumption:  100kg/h steam heating  (or 6*10kw electric heaters)

Agitator: 1.1kw motor, explosion proof with UL & CSA & CE approved

Copper helemt: mushroom shape (also have other shape for choice)

4 Plates + 12 Plates Copper column:  14 inch / 350mm

Copper Dephlegmator : shell and tube type

Copper Catalyst : filled with copper material

SUS304 Condenser : shell and tube type

SUS304 Parrot with glass proof

SUS304 CIP system: CIP ball & no-return ball, CIP pipe, CIP pump

SUS304 Alcohol storage tank for hearts, heads & tails

Bypass system: from pot to condenser / from pot to high column to condenser / from pot to short column to condenser.

Price: 60000USD-85000USD.




设备流程图
