5000L Medicine Fermenter Vaccine Fermenter Yeast Fermenter

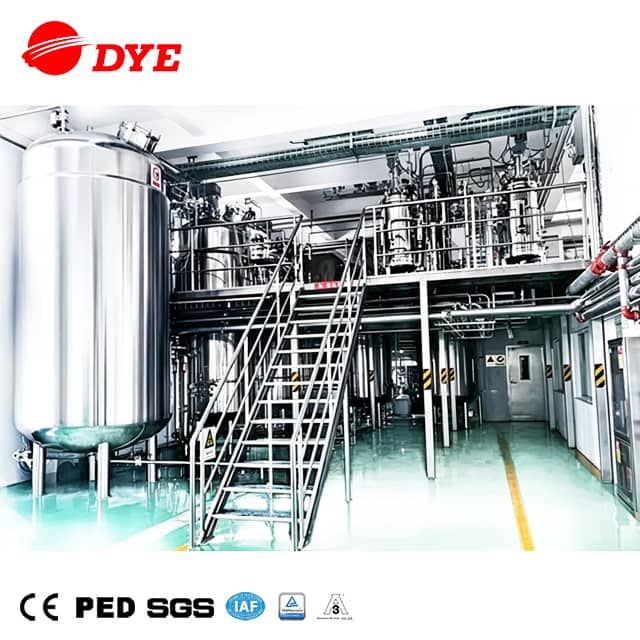

  The biological fermentation tanks are widely used in biological engineering, pharmaceuticals, vaccines, yeast production, fine chemicals and other industries. The tank body and the upper and lower filling heads are processed by spinning R-angle, and the inner wall of the tank is mirror-polished, and there is no hygienic dead angle.

  The fully enclosed design ensures that the materials are always mixed and fermented in a pollution-free state. The equipment is equipped with air breathing holes, CIP cleaning nozzles, manholes and other devices.

Main Feature:

1. Can be cleaned online by CIP and sterilized by SIP (121°C/0.1MPa).

2. Designed according to sanitary requirements, the structure design is very user-friendly and easy to operate. Smooth transmission and low noise.

3. Appropriate diameter-to-height ratio design, customized stirring device on demand, energy saving, good stirring and fermentation effect.

4. The surface of the inner tank body is mirror polished (roughness Ra≤0.4µm); the process openings such as inlet and outlet nozzles, sight mirrors, manholes and the welding of the inner tank body adopt the arc transition of the stretching flanging process , smooth and easy to clean without dead ends, to ensure the reliability and stability of the production process, in line with "cGMP" and other specifications.


Mixing method magnetic stirring/mechanical stirring
Material 304/316L stainless steel
Sterilization method on-site sterilization auto control/manual control
Control system Siemens PLC, industrial LCD touch computer control, parameters can be set to store, can be remotely connected to the computerthrough the USB interface, the data
Stirring system high-powered stirring oar, antifoam oar
AC electrical machine infinite speed variation; rpm in the fermenter: 70~1200rpm±1%, the height of the stirring oar can be adjusted
Temperature detection and control Heat by thermostatic water tank and circulate by circulating pump, autocontrol (cooling water+5℃) to 65℃±0.1℃,temperature probe(US)
pH detection and control 2.00-12.00±0.05pH, autocontrol by adding acid and base, pH sensorand shielding lead. fermenter is autocontrolled with peristaltic pump
DO detection and control 0-150±3% displaying precision 0.1%, sensor (Mettler, Switzerland) and shielding lead(Mettler, Switzerland)
Feed control uses peristaltic pump (Longe) to add meterials
Antifoam control Tested by sencor and added antifoamer by peristaltic pump
Pressure Control Pressure meter and digital display and digital remote control, pressure control

Yeast Fermenter Biological Fermentation Project
