500L Alcohol Distillery Equipment Copper Distillation Column Gin Still for Sale

500L-II,steam heating with jacket,8plates column
Availability:
Quantity:
  • DYE-II

  • DYE

  • HS: 8438400000


Main Features:

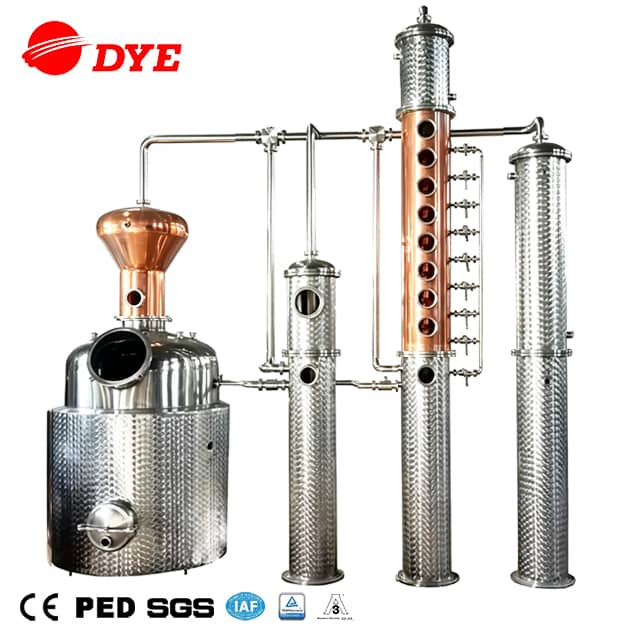

The picture is of our 500L Jacketed, Steam Heated, Pro Series Gin Stills.

This still will produce great Whiskey, Gin and everything in between.

This Still comes with one Copper Column.

The individual Plate Drain Valves in the 8 Plate Copper Whiskey Column can be opened or closed allowing for better control of flavor profiles and proof.

The Copper Whisky Column has 8 bubble plates and a Dephlegmator in the top.

The 8 plate Whiskey Column will produce up to 190 proof in one run.

If you want to do a stripping run, you simply open the Plate Drain Valves in the Copper Whiskey Column.

This 500L Still must be heated by low pressure steam boiler.

This Still is great for producing Whiskey, Bourbon, Moonshine, Brandy, Rum and Gin (with the optional Gin Basket).


Parameter:


Working capacity: 100-5000L
Total Volume: working capacity*130%-150%
Voltage: 200V-240V/380-440V/600V
Weight: 500kg-5000kg
Material:  SUS3048/SUS316L/COPPER-C12200
Motor: 3-phase power,UL/CSA/CE/ATEX,or Customizable brand
Reducer: NEMA Standard (Made in Italy);ICE Standard (Made in China)
Welding Technolog: High purity argon arc welding
Heating Method: Steam/Water bath/Oil/Electric/Firewood/Gas
Heating form: Direct or indirect heating
Distillation method: Liquid distillation by default, custom solid distillation can be customized
Running time: 2-8h,Customizable continuous distillation
Shape:  Upper and lower heads/Customizable
Distilled products: Gin/Whisky/Vodka/Brandy/Tequila/Rum/Bourbon
Optional module:  1.Cooling water recycling system
2.Light system
3.Alcohol storage tank system(Head/Heart/Tail)

最终11
