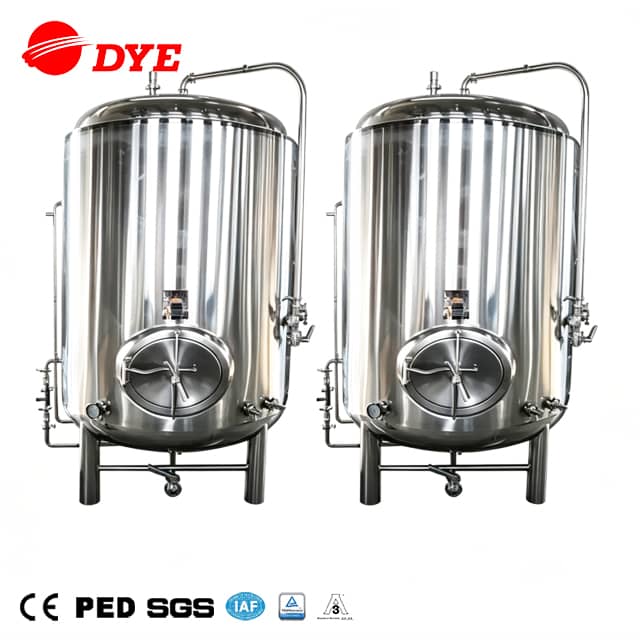

DYE stainless steel Bright Beer Tanks water storage for sale

Bright Beer Tanks with cooling jacket

Quantity:
  • DYE-BBT
  • DYE
  • HS: 8438400000

1000L bright beer tank,stainless steel

Features:

· All connections are fully welded Tri Clamp fittings

· 15 psi operating pressure; 30 psi max pressure

· 1.5 in Tri Clamp pressure gauge

· 3 in Tri Clamp versitile port for dry hopping, CIP, and the pressure relief valve

· 1.5 in Tri Clamp sampling valve

· 1.5 in Tri Clamp thermowell for LCD thermometer

· 1.5 in Tri Clamp carb stone with 3/8 in ball valve

· 1.5 in blow off cane with 1.5 in Tri Clamp to 1/2 in NPT ball valve

· Neoprene insulation jacket

· Custom Ss butterfly valves with racking arm

· Adjustable feet

· Made from 304 stainless steel



Alcohol Collecting Tank

Used for storage spirit of head, heart and tails.
Can do as different shape.
Structure: Single layer

12 Collection tanks after distilling equipment 扣






7DYE-I Whisky still

Working Capacity: 250L

All copper inner pot with SUS304 jacket & PU foam insulation

Electric oil bath heating with control box

Power consumption: 3*7kw electric heater ( or 25kg/h steam heating)

Agitator: 0.75kw motor, explosion proof with UL & CSA & CE approved

Copper helemt: ball shape (also have other shape for choice)

4 Plates Copper column:  16 inch / 400mm

Copper dephlegmator : shell and tube type

Copper condenser : shell and tube type

Copper parrot with glass proof

SUS304 CIP system: CIP ball & no-return ball, CIP pipe, CIP pump

SUS304 alcohol collecting tank: 300L

Bypass system: from pot to condenser directly

Price: 30000USD-45000USD


01

DYE-II Gin still

Working Capacity: 300L

All copper inner pot with SUS304 jacket & PU foam insulation

Electric oil bath heating with control box

Power consumption: 3*8kw electric heater ( or 30kg/h steam heating)

Agitator: 0.75kw motor, explosion proof with UL & CSA & CE approved

Copper helemt: cone shape (also have other shape for choice)

4 Plates Copper column:  8 inch / 219mm

Copper Dephlegmator : shell and tube type

SUS304 Gin basket: inner with copper basket

SUS304 Condenser : shell and tube type

SUS304 Parrot with glass proof

SUS304 CIP system: CIP ball & no-return ball, CIP pipe, CIP pump

SUS304 alcohol collecting tank: 300L

Bypass system: from pot to condenser / from pot to gin basket to condenser / from pot to column to condenser

Price: 23000-33000USD.


1

DYE-III Multi-Purpose still

Working Capacity: 1000L

Upper copper inner pot with SUS304 jacket & PU foam insulation

Steam heating without control box

Power consumption:  100kg/h steam heating  (or 6*10kw electric heaters)

Agitator: 1.1kw motor, explosion proof with UL & CSA & CE approved

Copper helemt: mushroom shape (also have other shape for choice)

Glass Gin basket: inner with copper basket

4 Plates + 16 Plates Copper column:  14 inch / 350mm

SUS304 Dephlegmator : shell and tube type

SUS304 Condenser : shell and tube type

SUS304 Parrot with glass proof

SUS304 CIP system: CIP ball & no-return ball, CIP pipe, CIP pump

Bypass system: from pot to condenser / from pot to gin basket to condenser / from pot to column to condenser. etc.

Price: 60000USD-85000USD.


01

DYE-IV Vodka still

Working Capacity: 1000L

Upper copper inner pot with SUS304 jacket & PU foam insulation

Steam heating without control box

Power consumption:  100kg/h steam heating  (or 6*10kw electric heaters)

Agitator: 1.1kw motor, explosion proof with UL & CSA & CE approved

Copper helemt: mushroom shape (also have other shape for choice)

4 Plates + 12 Plates Copper column:  14 inch / 350mm

Copper Dephlegmator : shell and tube type

Copper Catalyst : filled with copper material

SUS304 Condenser : shell and tube type

SUS304 Parrot with glass proof

SUS304 CIP system: CIP ball & no-return ball, CIP pipe, CIP pump

SUS304 Alcohol storage tank for hearts, heads & tails

Bypass system: from pot to condenser / from pot to high column to condenser / from pot to short column to condenser.

Price: 60000USD-85000USD.




设备流程图

DAEYOO PED English         2017CE           ISO 2017
