DYE-III
DYE
Main Features:
1. Is easy to operate and use, easy to clean and occupies a small area.
2. High safety, high work efficiency, long service life, low energy consumption, good quality and low price.
3. Provide customized services, technical and drawing support
4. Can steam heating, electric heating (direct and indirect type) or direct fire heating
5. Apply to whiskey, brandy, rum, vodka, gin, tequilas and bourbons etc.
6. Efficient CIP spraying ball for 360-degree cleaning.
7. Italy brand gear box, NEMA standard for North American Market
8. Explosion proof motor, be CE, UL, CSA approved
Advantage:
1. Designed with German technology & traditional Chinese distillation equipment, and feedback from several trials and foreign customers.
2. Good sealing reduces waste, increase the wine yield (5%-10%) and improve quality.
3. One machine and dual usage. It could make whisky, rum, brandy, vodka, gin, tequila etc.by once running of the distiller. By twice distillation the alcohol content will up to 95% and it can also remove methanol.
4. Fast heat conduction can save energy. The material of our distiller are thicker than stills offered by many other manufacturers. We use C12200 red copper as our copper material. It is a special material for pressure vessles and contains 99.9% pure copper, which makes good performance on heat treatment.
5. Less waste and save labor, also easy to operate and control
6. The material can be grains, fruits, molases, low content alcohol etc.
7. The equipment is made of stainless steel and copper, with beautiful appearance and high sanitary level.
8. Save floor space and greatly improve the hygiene of the entire distillation site for you.
DYE's Standard Features Guarantee Your Safety:
1. Explosion-proof mixing motor ,UL/CSA/ATEX Compliant certification based on your local power department needs.
2. Explosion-proof light,24V/DC.
3. Electrical controls that comply with Class 1,Division 1 directives.
4. Cooling water abnormal alarm and emergency shutdown system.
5. Fully closed spirit safe
6. Equipment is manufactured and designed in accordance with ASME BPVC VIII
Specification:
| Typical Distillation Times: | • 1 hour heat up • 2-4 hr stripping run |
| • 3~5 hour distillation time | |

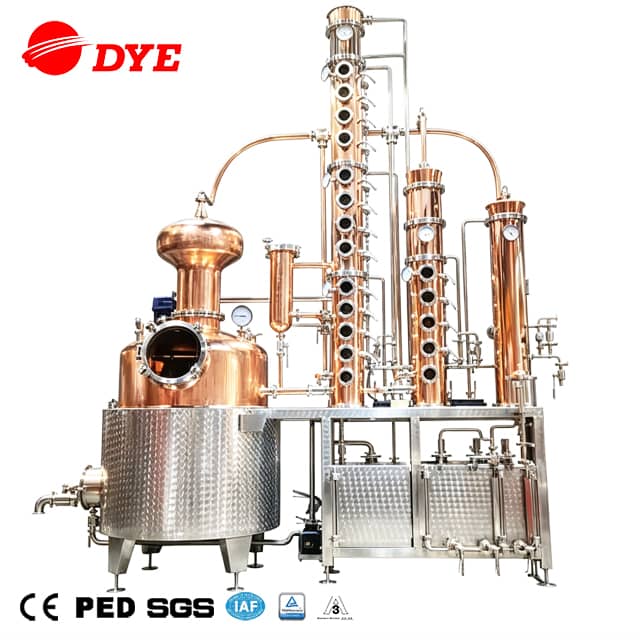

| Structure: | -1 x SS304/red copper still pot -1 x Red copper goose neck(helmet) |
| -1 x SS304/red copper Gin basket | |
| -1 x Red copper 4~12plate distillation colum | |
| -1 x SS304/red copper dephlegmator | |
| -1 x SS304/red copper condenser | |
| -1 x SS304 parrot outlet | |
| -1 x SS304 support for condenser | |
| Options: | High Torque Mash Agitator, CE/UL/CSA/ATEX Explosion Proof . Voltage:110/208/220/230/240/380/400/415/460/600V,3 phase 50/60Hz |
| Copper Kettle | |
| Copper dephlegmator/condenser | |
| CIP pump and CIP pipe | |
| Bottom spirit storage tank | |
| System at a Glance: | Best use: Dedicated Stripping Still, Whiskey, Brandy, Tequila, Gin or Rum Production Acohol content after distillation about |
| 70+-10% Versatile and Cost Effective | |
| Easy Maintenance with Clean in Place | |
| 304 Polished and Brushed Stainless and Polished Copperconstruction |
