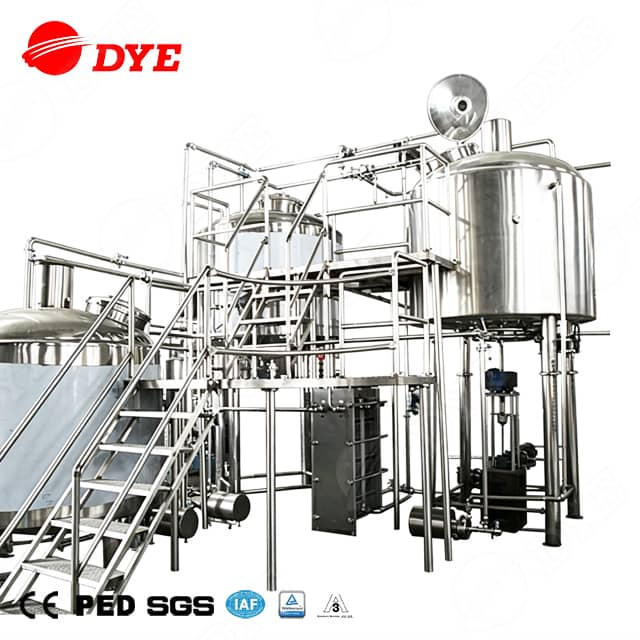

20BBL Steam Heating 4 Vessels Mash Tun Brew Kettle Whirlpool Hot Water Tank Combined Brewery Equipment
The whole set beer equipment is made of austenitic stainless steel.The cooling jacket adopts dimple jacket. The jackets are provided at tank body and conical bottom to effectively increase the cooling speed. Heat exchanging area of jacket of different proportions can be allocated according to customers' technological requirements. The stainless steel brewing kit is widely used in brewery, bar, hotel, family etc.
The advantages of our beer equipment:
1. Roughness is less than 0.22μm
2. Without any dead corner
3. Discharge with rotation
4. Multi-stage cooling jacket can save more energy
5. Various heating methods (electric heating, gas heating, steam heating) of brewhouse
6. Filter plate (unique design with back taper)
7. Churn (manual, semi-automatic, top stirrer and bottom stirrer)
8. We have sufficient spot goods, conventional criteria beer equipment and we can deliver the goods within 3 days after signing the contract and remittance.
9. Our beer brewery equipment is mainly used in brewing of beer, stout and rum. Besides, the product made by our equipment is tasty and fragrant.
Parameter:
| DYE-BREWHOUSE | |
| Working capacity: | 100L~10000L |
| Structure : | -2/3/4 vessel combintion DYE manufactures brewhouses in standard 2-vessel manual designs for 7bbl, 15bbl and 20bbl sizes and 20bbl, 30bbl, and 50bbl fully automated systems with 3 – 4-vessels. Vessel layouts include 2-vessel systems (Mash Tun/Lauter Tun and Kettle/Whirlpool), 3-vessel systems (Mash Tun, Lauter Tun, Kettle/Whirlpool), and 4-vessel systems (Mash Tun, Lauter Tun, Kettle, Whirlpool). All brewhouses are built of high-grade, 304 ANSI stainless steel, |
| options : | - Add High Torque Agitator, CE/UL/CSA Certificate. - Voltage:208/220/230/240/380/400/415/460/600V,3 phase 50/60Hz - control can be coose simi/automatic control |
| System at a Glance: | * 7bbl – 50bbl systems in 2, 3, & 4-vessel configurations * 7bbl, 15bbl, 20bbl Manual, 20bbl, 30bbl, 50bbl Fully Automated * Continuously welded, heavy-duty type 304 stainless-steel construction * Slip resistant stainless-steel or fiber grate style stairs and platforms * Manual or automatic stainless-steel rakes and plow systems * Shallow conical bottom cone for complete liquid run of * Lauter machine arm utilize a pneumatically operated spent grain plow * Integrated and Internal CIP * High-gravity brewing capabilities * Tangential inlet velocity inductor enabling optimum wort handling |
20BBL Steam Heating 4 Vessels Mash Tun Brew Kettle Whirlpool Hot Water Tank Combined Brewery Equipment
The whole set beer equipment is made of austenitic stainless steel.The cooling jacket adopts dimple jacket. The jackets are provided at tank body and conical bottom to effectively increase the cooling speed. Heat exchanging area of jacket of different proportions can be allocated according to customers' technological requirements. The stainless steel brewing kit is widely used in brewery, bar, hotel, family etc.
The advantages of our beer equipment:
1. Roughness is less than 0.22μm
2. Without any dead corner
3. Discharge with rotation
4. Multi-stage cooling jacket can save more energy
5. Various heating methods (electric heating, gas heating, steam heating) of brewhouse
6. Filter plate (unique design with back taper)
7. Churn (manual, semi-automatic, top stirrer and bottom stirrer)
8. We have sufficient spot goods, conventional criteria beer equipment and we can deliver the goods within 3 days after signing the contract and remittance.
9. Our beer brewery equipment is mainly used in brewing of beer, stout and rum. Besides, the product made by our equipment is tasty and fragrant.
Parameter:
| DYE-BREWHOUSE | |
| Working capacity: | 100L~10000L |
| Structure : | -2/3/4 vessel combintion DYE manufactures brewhouses in standard 2-vessel manual designs for 7bbl, 15bbl and 20bbl sizes and 20bbl, 30bbl, and 50bbl fully automated systems with 3 – 4-vessels. Vessel layouts include 2-vessel systems (Mash Tun/Lauter Tun and Kettle/Whirlpool), 3-vessel systems (Mash Tun, Lauter Tun, Kettle/Whirlpool), and 4-vessel systems (Mash Tun, Lauter Tun, Kettle, Whirlpool). All brewhouses are built of high-grade, 304 ANSI stainless steel, |
| options : | - Add High Torque Agitator, CE/UL/CSA Certificate. - Voltage:208/220/230/240/380/400/415/460/600V,3 phase 50/60Hz - control can be coose simi/automatic control |
| System at a Glance: | * 7bbl – 50bbl systems in 2, 3, & 4-vessel configurations * 7bbl, 15bbl, 20bbl Manual, 20bbl, 30bbl, 50bbl Fully Automated * Continuously welded, heavy-duty type 304 stainless-steel construction * Slip resistant stainless-steel or fiber grate style stairs and platforms * Manual or automatic stainless-steel rakes and plow systems * Shallow conical bottom cone for complete liquid run of * Lauter machine arm utilize a pneumatically operated spent grain plow * Integrated and Internal CIP * High-gravity brewing capabilities * Tangential inlet velocity inductor enabling optimum wort handling |
