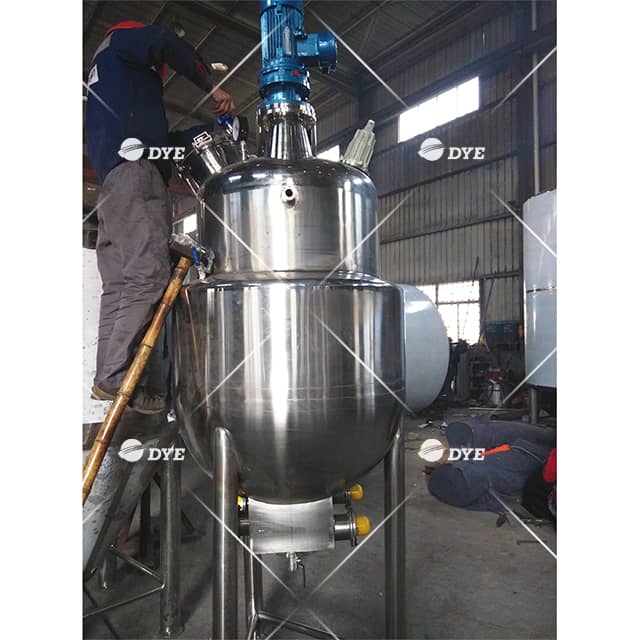

Ball Type Stainless Steel Vacuum Concentration Tank
QNG series ball-shape vacuum concentrator ( concentration tank) is applicable to vacuum concentration, crystallization, ointment collection, distillation and alcohol recovery of liquid materials in traditional Chinese medicine, Western medicine, food, glucose, fruit juice, sugar, biopharmaceutical industry and chemical industry etc.The concentration specific gravity reaches 1.35-1.45.
Component:
This equipment primarily contains concentration tank, gas-liquid separator,cooler and water receiving tank. The concentration under reduced pressure takes short time and prevent the destruction of effective content in the thermal sensitive material.
Parameter:
| Model | QNG-300 | QNG-500 | QNG-700 | QNG-1000 | |
| Evaporation(kg/h) | 70 | 120 | 145 | 195 | |
| Volume（L） | 300 | 500 | 700 | 1000 | |
| Jacket pressure（Mpa） | 0.09 | ||||
| Vacuum degree（mmHg） | 500-620 | ||||
| Material: | SUS304 | ||||
| Heating area(㎡) | 1.3 | 1.6 | 2 | 2.8 | |
| Condensing area(㎡) | 2.4 | 3 | 3.5 | 4 | |
| Weight(kg) | 380 | 450 | 630 | 950 | |
| Outline size（mm) | Length | 1900 | 2030 | 2100 | 2335 |
| Width | 1100 | 1200 | 1300 | 1520 | |
| Height | 2300 | 2500 | 2600 | 2765 | |
