DYE
Vertical conical extracting tank can be used in Chinese medicine, food and chemical industries to normal pressure, micro-pressure, water frying, warm soaking, heat cycling, cycling leaking, redolent oil extract and organically solvent recycle.

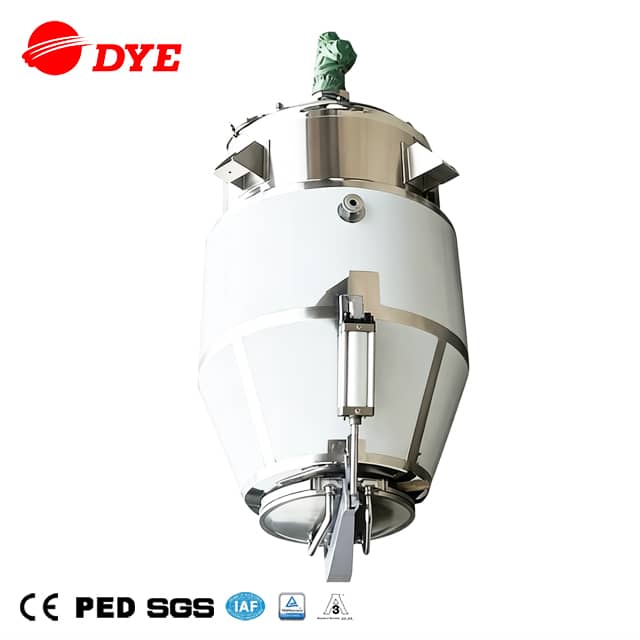

The Vertical Conical Type Herb Cannabis Hemp Extract Extraction Tank is a high-performance extracting tank designed for extracting valuable compounds from herbs, cannabis, hemp, and other plant materials. Whether you're in the cannabis, herbal, or essential oils industry, this extraction equipment provides an efficient and reliable solution for producing high-quality extracts with precision and consistency.
Designed with a vertical conical shape, the tank promotes efficient solvent circulation, ensuring maximum extraction efficiency and reduced processing times. Built with durable materials and advanced technology, the extraction tank offers superior performance, whether you're working with hemp, cannabis, or other botanicals.
1. Vertical Conical Type Herb Cannabis Hemp Extract Extraction Tank ideal for extracting tank applications in the cannabis, hemp, and herbal industries
2. Specially designed extraction equipment for high-efficiency extraction of essential oils, cannabinoids, terpenes, and other bioactive compounds
3. Conical shape promotes better solvent circulation, ensuring maximum yield and faster extraction times
4. Durable, high-quality construction for long-lasting, reliable performance
5. Suitable for large-scale extraction processes, with easy scalability for growing operations
6. Precision controls for consistent and accurate extraction results
7. Extraction tank for sale – available for both small-batch and commercial-scale extraction operations
8. quick-open slag discharge door, safety and reliable, it’s easy to discharge slag.
9. high efficiency and simple operating, also has ClP cleaning system that is in accordance with GMP standards.
10. material adopts high quality stainless steel 304/316L.
Whether you're extracting hemp, cannabis, or herbal oils, the Vertical Conical Type Herb Cannabis Hemp Extract Extraction Tank provides a professional, efficient, and reliable solution. Achieve superior quality extractions while enhancing production efficiency with this essential piece of extraction equipment.
Parameter:
| Model | TQ-Z-1.0 | TQ-Z-2.0 | TQ-Z-3.0 | TQ-Z-6.0 | TQ-Z-8.0 | TQ-Z-10 |
| Volume(L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
| Design pressure in the tank(Mpa) | 0.09 | |||||
| Design pressure in the jacket(Mpa) | 0.3 | |||||
| Compressed air pressure（Mpa) | 0.6-0.7 | |||||
| Diameter of feeding inlet(mm) | 400 | 400 | 400 | 500 | 500 | 500 |
| Heating area(㎡) | 3 | 4.7 | 6 | 7.5 | 9.5 | 12 |
| Condensing area（㎡） | 4 | 4 | 12 | 5 | 8 | 20 |
| Cooling area(㎡） | 1 | 1 | 1.5 | 2 | 2 | 3 |
| Filtering area(㎡) | 3 | 3 | 3 | 5 | 5 | 6 |
| Diameter of residue discharging door(mm) | 800 | 800 | 1000 | 1000 | 1200 | 1200 |
| Energy consumption(kg/h) | 245 | 325 | 345 | 645 | 720 | 850 |
| Equipment weigh（kg) | 1800 | 2050 | 2400 | 3025 | 4030 | 6500 |
