Pharmaceutical Equipment Alcohol Recovery Tower for Dilute Alcohol Distillation, Solvent Recycling Machines
The alcohol recovery tower is suitable for thin alcohol recovery in pharmacy, food, light industry and chemical industry etc. It's mainly for get high concentration medium.The device can distill thin alcohol of 30~50 degrees to 90~95 degree, and the alcohol content in the residual liquid is low, which is in conformity with the environmental protection requirements.
Component:

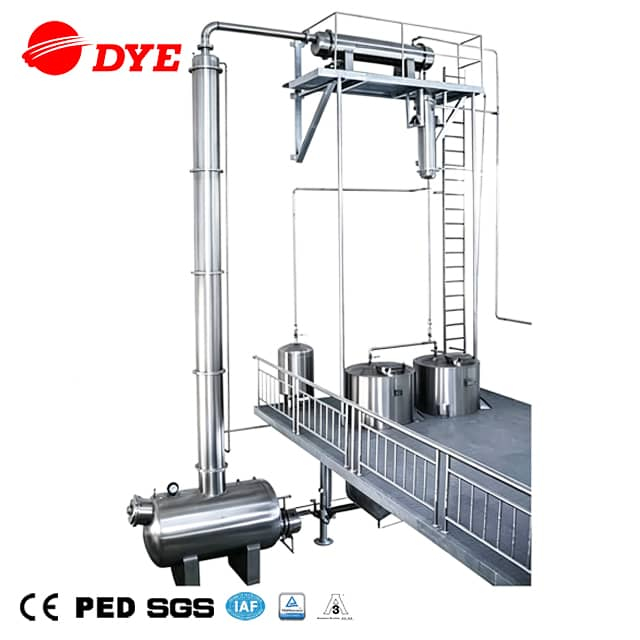

The alcohol recovery tower is composed of the six major parts such as tower kettle, tower body, condenser, cooler, buffer tank and high position storage tank etc.
Main Features：
1. The parts of the equipment that contact materials are all made of 0Cr18Ni9 stainless steel, which has good anticorrosive performance.
2. It has such advantages as energy saving, environmental protection, cost reduction and high efficiency.
3. is made of high efficient stainless steel corrugated filler. The parts that contact the materials are all made of stainless steel, which is corrosion resistant and in accordance with the GMP standard.
Parameter：
| Model | JH200 | JH300 | JH400 | JH500 | JH600 | JH800 |
| Volume of tower kettle(m³) | 0.6 | 1.2 | 1.5 | 2 | 2.5 | 3.2 |
| Tower body height(mm) | 6000 | 7000 | 7000 | 7000 | 7500 | 7500 |
| Tower body diameter（mm） | 200 | 300 | 400 | 500 | 600 | 800 |
| Condensing area(m²) | 9 | 15 | 23 | 30 | 40 | 58 |
| Cooling area(m²) | 1 | 2 | 2.2 | 4 | 6 | 8 |
| Heat exchange area(m²) | 3 | 5 | 6.5 | 10 | 15 | 20 |
| Recycling capacity(kg/h) | 40-50 | 90-100 | 150-160 | 280-300 | 420-440 | 600-620 |
| Recovery concentration(%) | 90-95 | |||||
| Filler form | Stainless steel corrugated filler | |||||
| Equipment weight(kg) | 1300 | 1900 | 2300 | 3000 | 4500 | 6800 |
| Outline size(mm) | 2300×700×7300 | 2600×800×8000 | 2600×1000×9000 | 3000×1400×10000 | 3000×1400×10000 | 3000×1400×10000 |
